Julabo

Julabo is renowned for producing robust instrumentation for heating & cooling, with a broad application range. They specialize in producing user friendly & reliable systems, based on proven German technology and years of Julabo expertise.

Julabo is renowned for producing robust instrumentation for heating & cooling, with a broad application range. They specialize in producing user friendly & reliable systems, based on proven German technology and years of Julabo expertise.

Heating Circulators (+20°C to +300°C)



Robust units for a variety of applications. Circulators are divided into different product lines – Economy, Corio, TopTech, and HighTech  suitable for any application and budget.



–  Complete selection of models for internal and external applications, with bath

tanks made of transparent materials (Plexiglas®, Makrolon®) or stainless steel.

–  Intuitive & user friendly, with extra bright displays, easy to read from  distance.

–  State-of-the-art control technology for quick and highly precise results.

–  Powerful circulating pumps, electronically adjustable, with Intelligent warning &

safety functions.

–  Complete selection of  practical accessories including bath lids, cooling coils, racks

for different test tubes, flasks etc.



 –

Economy Series

Corio Series

TopTech Series

 –

ED

E

Corio C

Corio CD

MB

MA

ME

Working Temperature (⁰C)

+20~100⁰C

+20~150⁰C

+20~100⁰C

+20~150⁰C

+20~100⁰C

+20~200⁰C

+20~200⁰C

Temperature Stability (⁰C)

±0.03⁰C

±0.03⁰C

±0.03⁰C

±0.03⁰C

±0.02⁰C

±0.01⁰C

±0.01⁰C

Heating Capacity (kW)

2 kW

2 kW

2 kW

2 kW

2 kW

2 kW

2 kW

Pump Capacity (l/min)

15

15

15

10

11-16

11-16

Pump Pressure (bar)

0.35

0.35

0.35

0.12

0.23-0.45

0.23-0.45

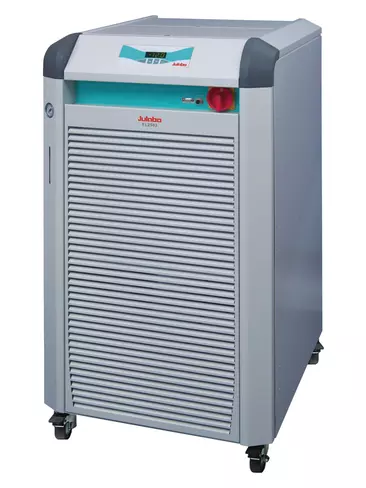

Recirculating Coolers (Chillers) for cooling down to -25°C





JULABO Recirculating Coolers (Chillers) can handle virtually any cooling task for laboratory & industrial applications.

–  Working temperature down to -25 °C.

–  Cooling capacity up to 20kW for industrial applications.

–  Available as air cooled or water cooled models.

–  Splash-proof keypad, with large, bright LED display.

–  Models with filling level indicator, pressure indicator.

–  Circulating pumps with flow rates up to 60 l/min and 6 bar pressure.

–  Easy filling and Drain tap easily accessible.



Model

Working temp

Temp stability>

Cooling capacity

at 20 C

Pump capacity flow rate (l/min)

Pump

Pressure

(bar)

F250

-10 to +40⁰C

±0.5⁰C

0.25

15

0.35

F500

+0 to +40⁰C

±0.5⁰C

0.5

24

0.5

F1000

+0 to +40⁰C

±0.5⁰C

1.0

23

1.0

FL300

-20 to +40⁰C

±0.5⁰C

0.3

15

0.35

FL601

-20 to +40⁰C

±0.5⁰C

0.6

23

1.0

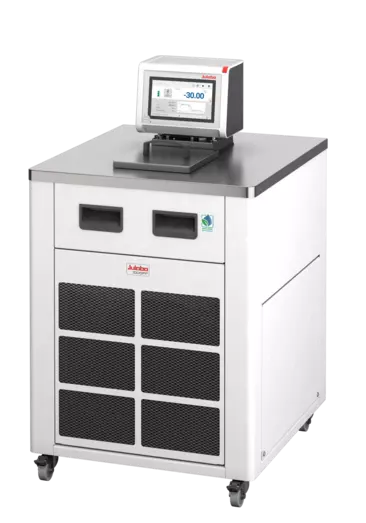

Refrigerated Heating Circulators (-50°C to +200 °C)



JULABO Refrigerated Heating Circulators are suitable for external applications with simultaneous operation inside the bath tank.

–  Rapid heat-up and cool-down times.

–  All models provide a drain port on the front for conveniently draining the bath fluid.

–  FP models offer proportional cooling control to ensure energy-saving performance.

–  Available in Economy, Corio, TopTech & HighTech Series.

Features of the CORIO Refrigerated Heating Circulators (-30 °C to +150 °C)

–  The new CORIO™ series distinguish themselves with a great price-to-performance ratio.

–  Brilliant, with bright display with strong illumination can be viewed easily from a long distance.

–  Ready for operation in a few easy steps.

–  More space in the internal bath, to the recessed cooling coil.

–  Easily change between internal and external circulation.

–  USB connection for easy connectivity.

–  Bath lid and drain tap included, removable ventilation



  –

Working Temperature

Temperature Stability (⁰C)

Bath opening (W x L / D cm)

Cooling Capacity at 20⁰C

Pump Capacity (l/min)

Pump Pressure (bar)

CORIO CD-1000F

-40 to +150°C

±0.03⁰C

22 x 15 / 15

1 kW

15

0.35

CORIO CD-1001F

-38 to +100°C

±0.03⁰C

35 x 41 / 30

1 kW

15

0.35

CORIO CD-600F

-30 to +150°C

±0.03⁰C

22 x 15 / 15

0.6 kW

15

0.35

CORIO CD-601F

-40 to +150°C

±0.03⁰C

22 x 15 / 20

0.6 kW

15

0.35

CORIO CD-900F

-40 to +150°C

±0.03⁰C

26 x 35 / 20

0.9 kW

15

0.35

CORIO CD-200F

-20 to +150°C

±0.03⁰C

13 x 15 / 15

0.22 kW

15

0.35

CORIO CD-201F

-20 to +150⁰C

±0.03⁰C

13 x 15 / 15

0.2 kW

15

0.35

CORIO CD-300F

-25 to +150⁰C

±0.03⁰C

13 x 15 / 15

0.31 kW

15

0.35

FP50-MA

-50 to +200°C

±0.02⁰C

18 x 12 / 15

0.90 kW

11-16

0.23-0.45

Water Baths & Shaking Water Baths





– High temperature stability of ±0.2C or ±0.02°C
– Working temperature range from +20 to 99.9
– Improved visibility with bright LED display
– Safety: warning and cut-off protection for high/ low temperature
– Removable bottom plate & shaking insert
– All wetted parts are made of stainless steel or high grade plastics
– Adjustable shaking frequencies from 20 to 200 RPM in SW models#
