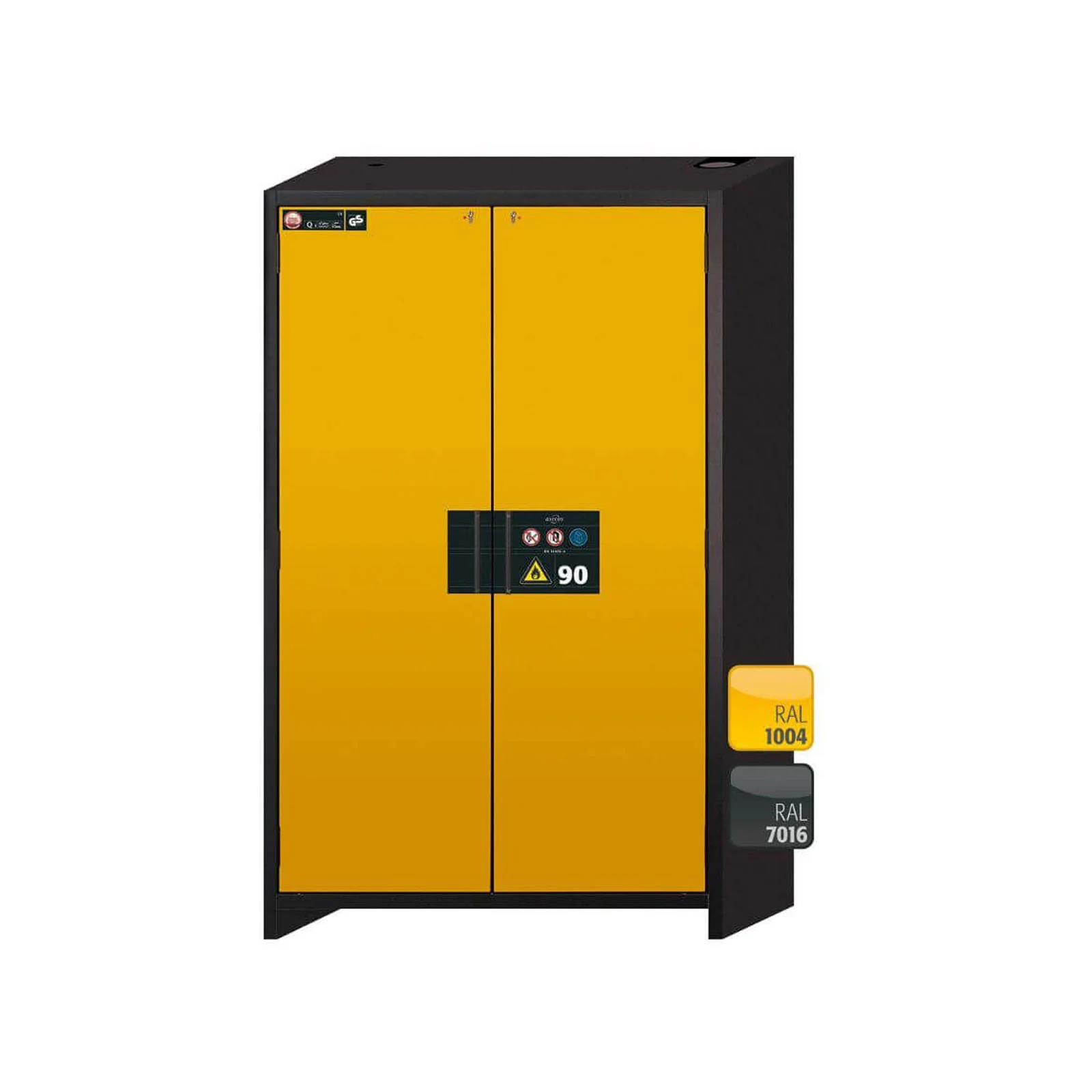

asecos Q-CLASSIC-90 Type 90 Safety Storage Cabinets in Pakistan
Fire-resistant safety storage cabinets for flammable liquids in laboratories and workplaces, tested to EN 14470-1 with 90-minute fire resistance.
The asecos Q-CLASSIC-90 range is designed for organisations that need controlled, fire-resistant storage of flammable liquids close to the workplace. It is especially relevant for pharmaceutical, chemical, research and quality-control facilities responding to EHS requirements, risk assessments or audit findings.
Available in approximately 60, 90 and 120 cm widths, Q-CLASSIC-90 cabinets can be selected with shelves, pull-out drawers, storage boxes, collecting sumps, colour options and ventilation or filtration arrangements. Exact configuration and certification depend on the selected model.
Supplied and supported in Pakistan by Continental Worldwide Trading Company (CWTC).
asecos Q-CLASSIC-90 Type 90 Safety Cabinet Video
Key Features & Practical Benefits

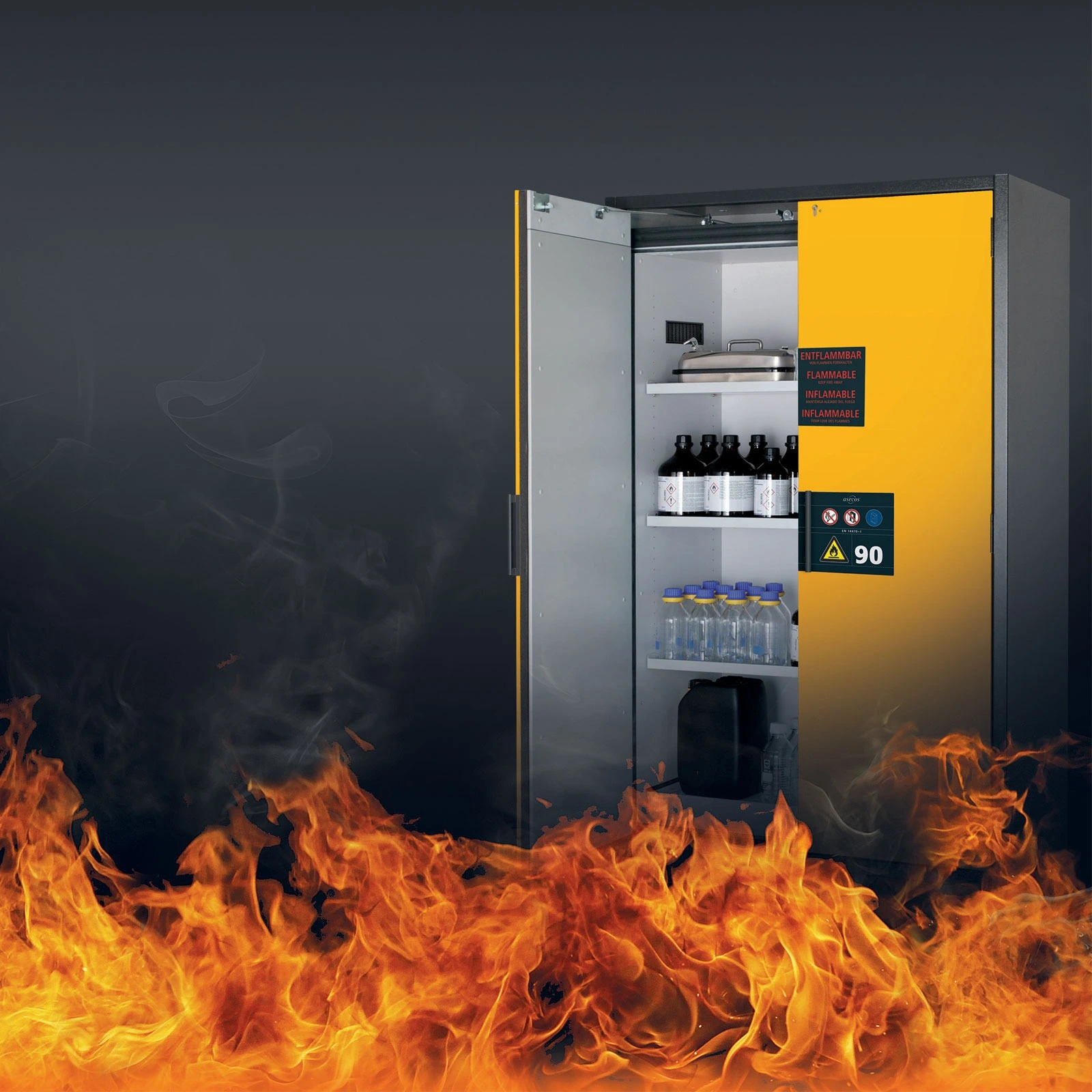

90-Minute Fire Resistance
Q-CLASSIC-90 cabinets are designed and tested as Type 90 safety storage cabinets under EN 14470-1.
Workplace Storage
Flammable liquids can be stored close to the point of use in laboratories and work areas, subject to the facility risk assessment.
Self-Closing Protection
Doors and relevant internal pull-outs are designed around safe closing and containment functions.
Ventilation Ready
The cabinet can be connected to a technical extraction system, with filtration options available where appropriate.
Transport Base & Q-Mover
Integrated transport provisions and the Q-Mover support safer relocation of an empty cabinet.
Configurable Interior
Shelves, pull-out drawers, storage boxes, collecting sumps and colour choices allow the cabinet to be matched to the workflow.
Industries & Application Examples
Pharmaceutical QC & R&D
Fire-resistant storage for flammable solvents and reagents used in analytical testing, formulation, research and quality-control laboratories.
EHS & Audit Remediation
A practical route when an audit identifies uncontrolled flammable-liquid storage, unsuitable cabinets or poor separation near the workplace.
Chemical & Analytical Laboratories
Organised storage of solvents, standards, cleaning agents and other flammable liquids used during routine laboratory work.

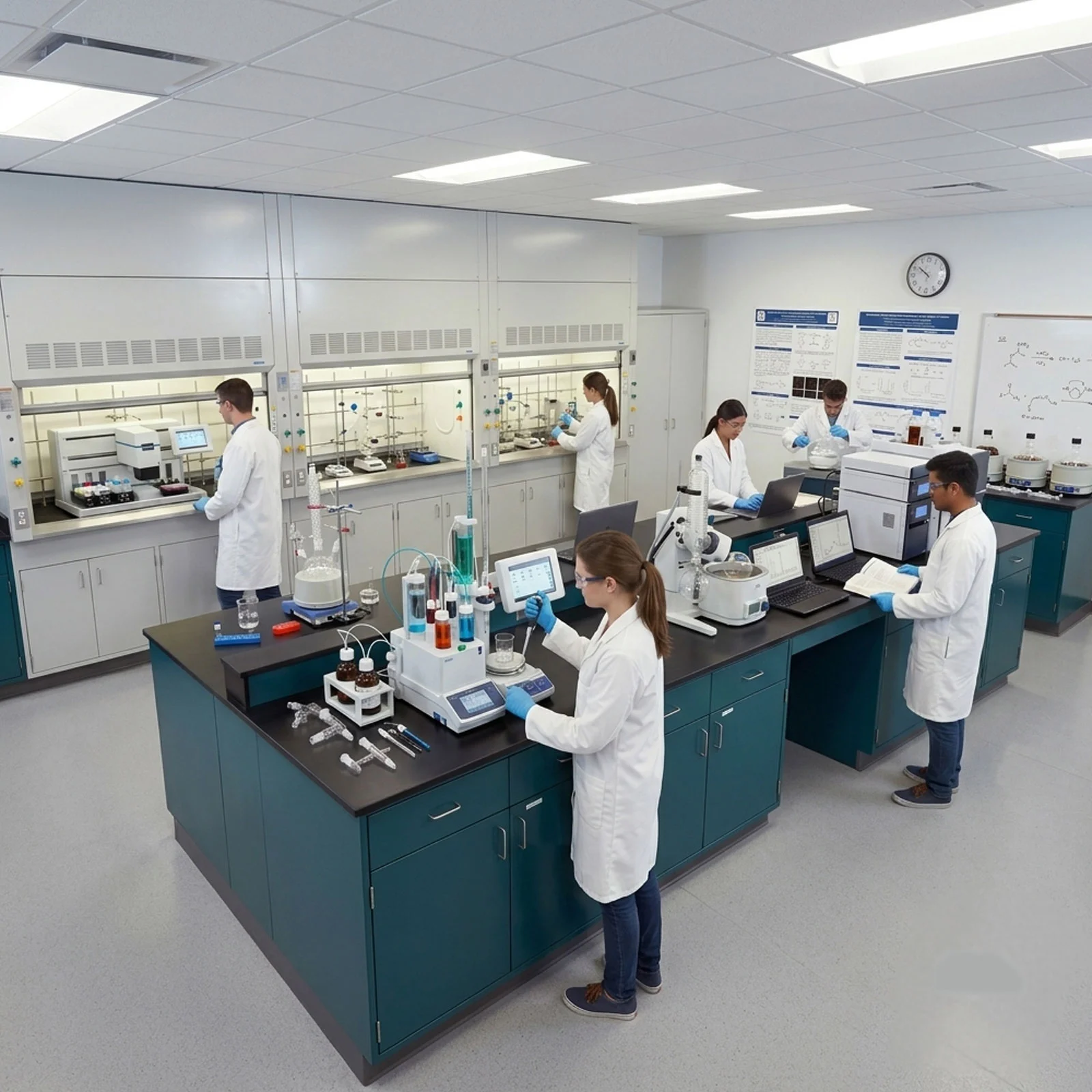

Universities & Research
Suitable for teaching and research environments where multiple users require controlled access to flammable chemicals.
Production & Plant Laboratories
Supports safer storage close to process laboratories, pilot plants, maintenance areas and production-quality checkpoints.
Point-of-Use Flammable Storage
Keeps approved working quantities near the application while supporting fire protection, organisation and spill containment.
Key Product Information
| Product family | Q-CLASSIC-90 |
|---|---|
| Cabinet type | Type 90 safety storage cabinet for flammable liquids |
| Fire resistance | 90 minutes according to EN 14470-1 |
| Common cabinet widths | Approximately 60, 90 and 120 cm |
| Interior directions | Shelves, pull-out drawers, storage boxes and collecting sumps |
| Ventilation | Prepared for connection to technical extraction; filtration options depend on the application |
Configuration note: Dimensions, load limits, internal equipment, colours and certifications depend on the exact cabinet configuration. FM 6050 and UL/ULC 1275 claims apply only to designated tested models; the final quotation and official data sheet define the supplied cabinet.
Available Sizes, Interiors & Configuration Options

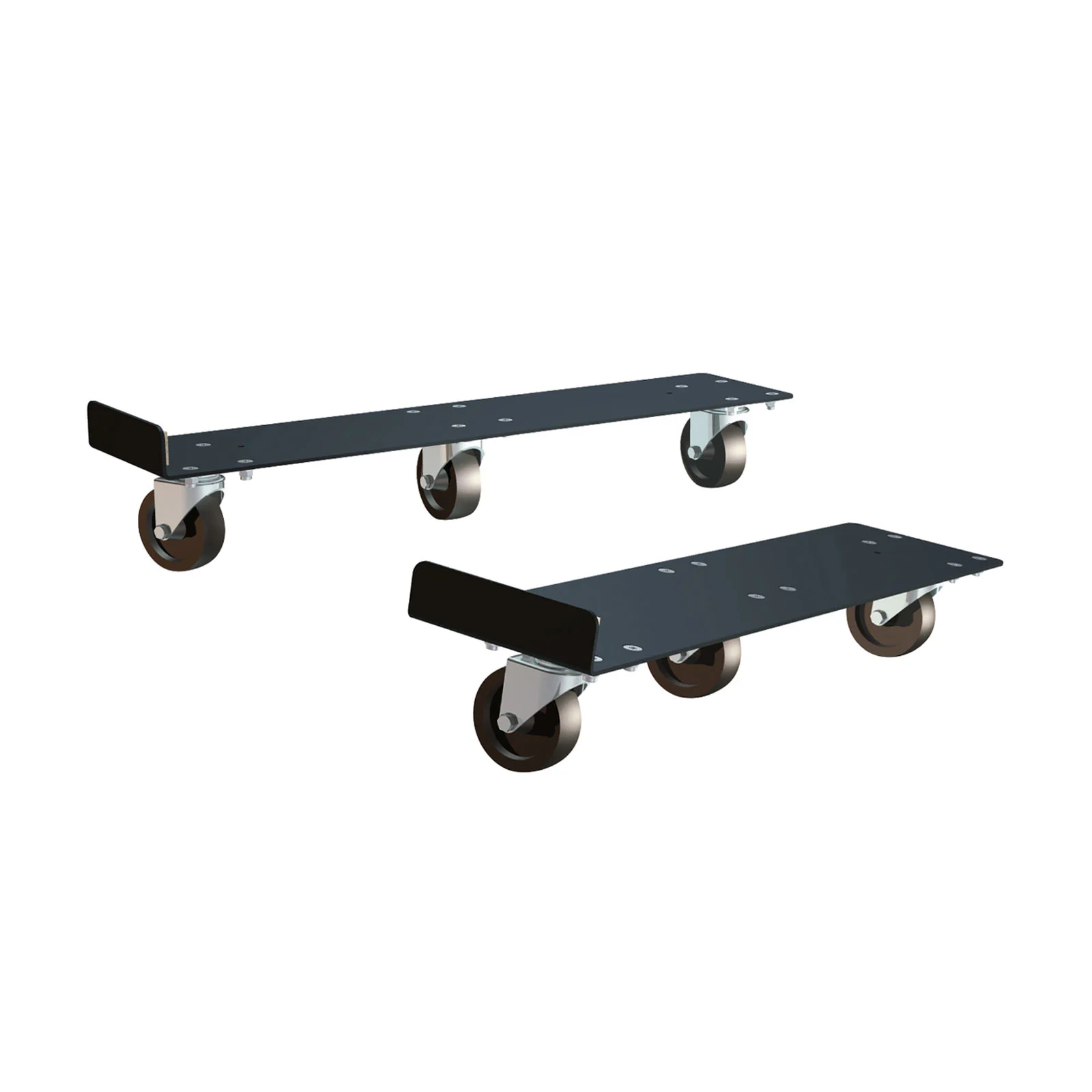

Q-Mover
Accessory for relocating an empty Q-LINE cabinet using its integrated transport base.
Interior Accessories
Shelves, pull-out drawers, storage boxes, collecting sumps and inserts for organised storage and spill management.

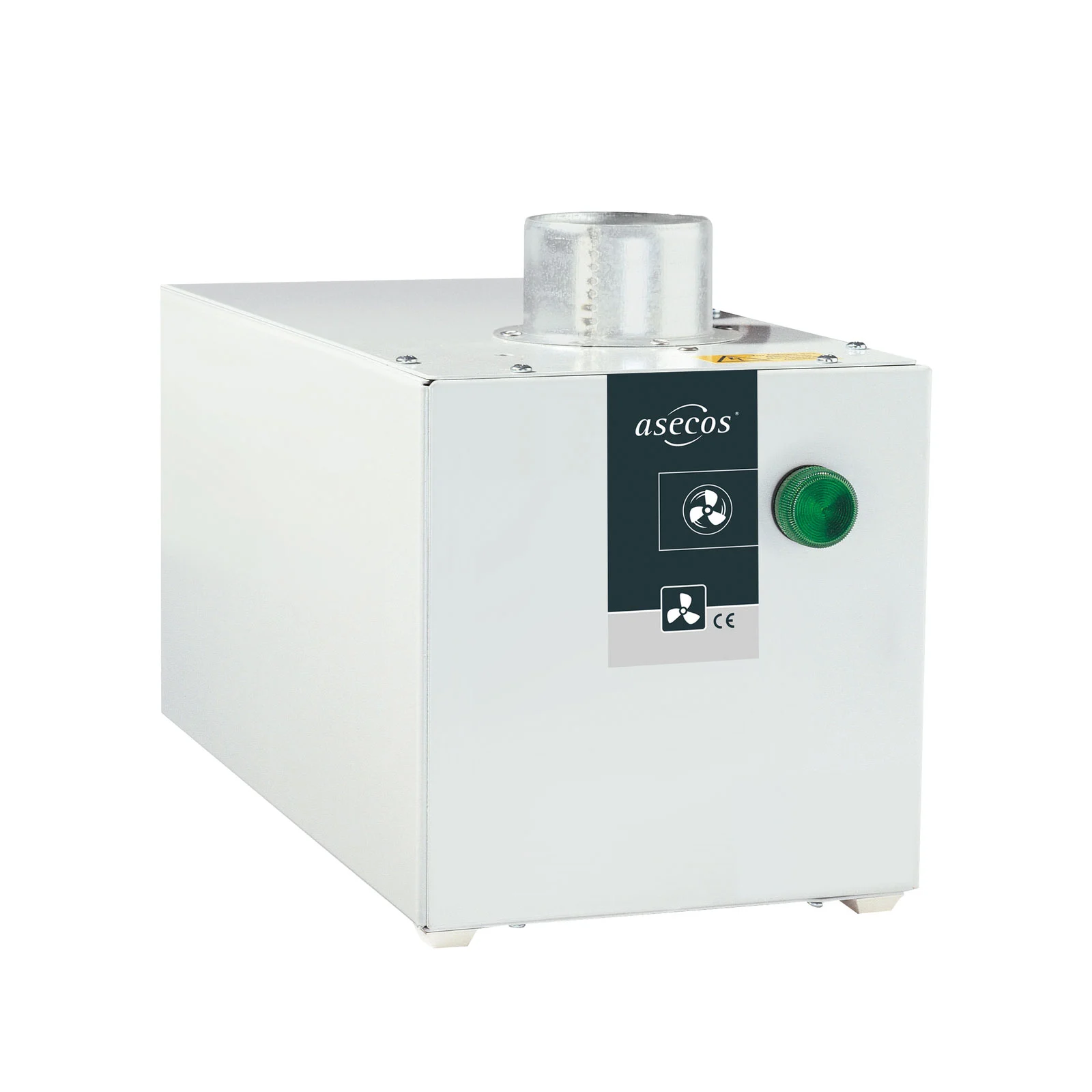

Extraction & Filtration
Technical extraction connections and compatible recirculating filtration solutions selected according to the risk assessment.

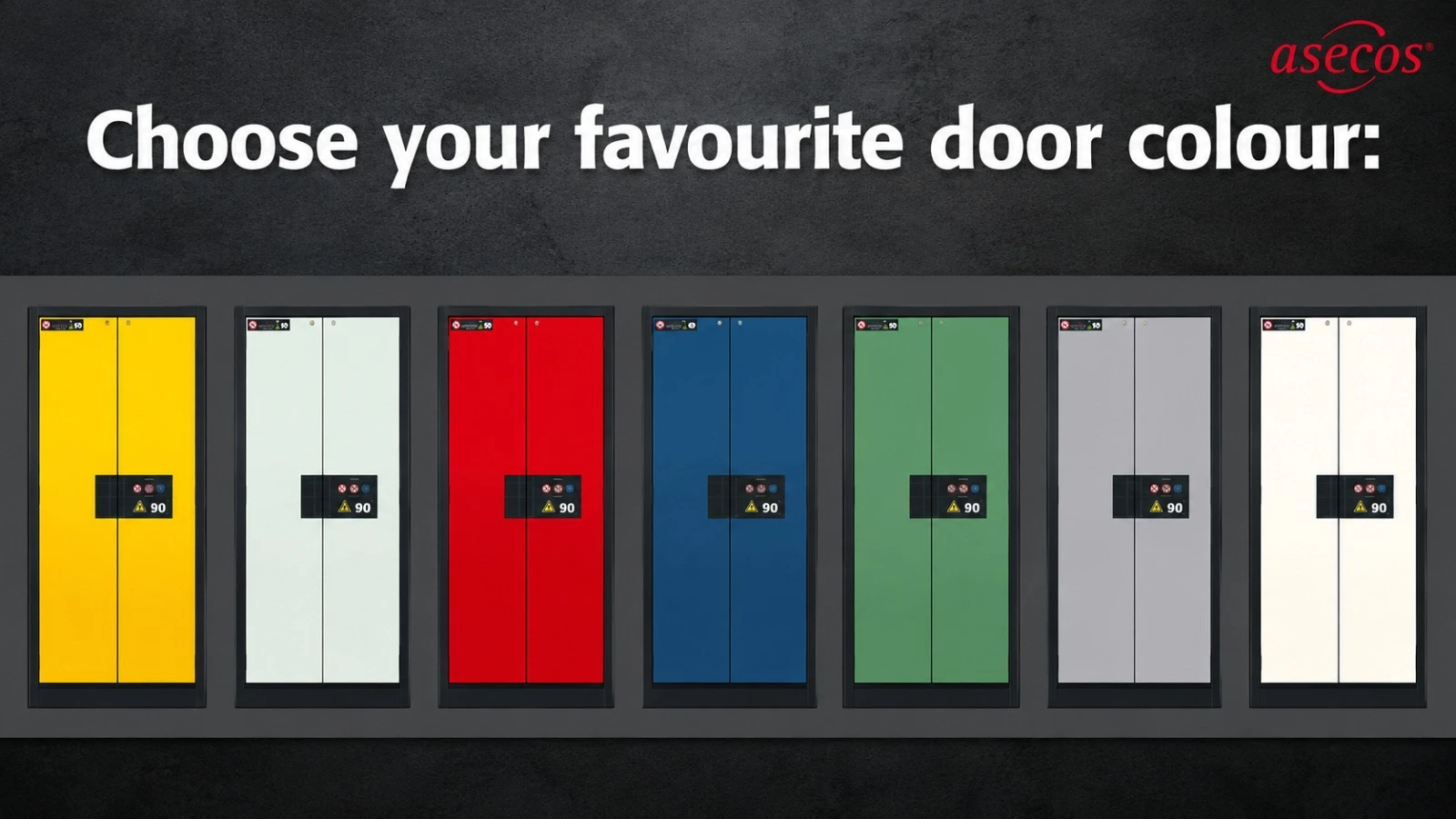

Custom sizes and colors
All cabinets have standard height and depth but width is configurable (2, 3 and 4 feet) along with colors.

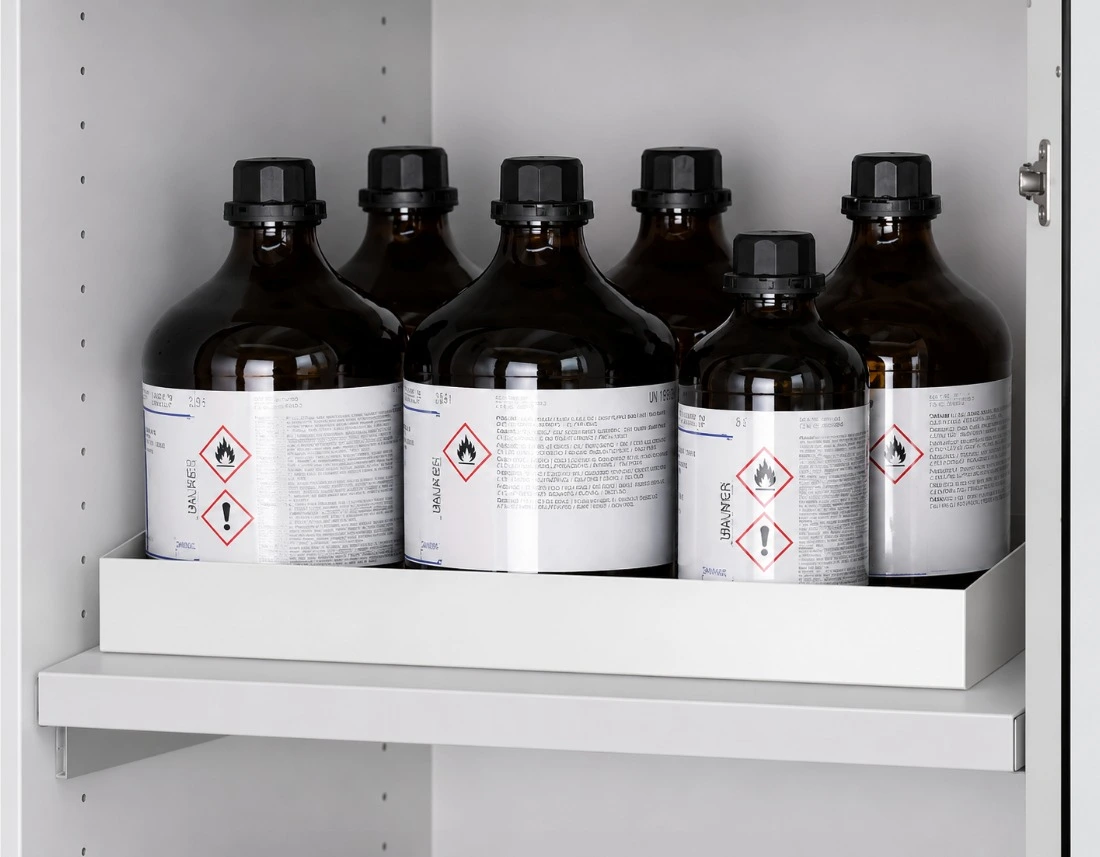

Shelves and sumps
Adjustable shelves allow customization based on bottle/container size while sumps contain spills according to user requirement.

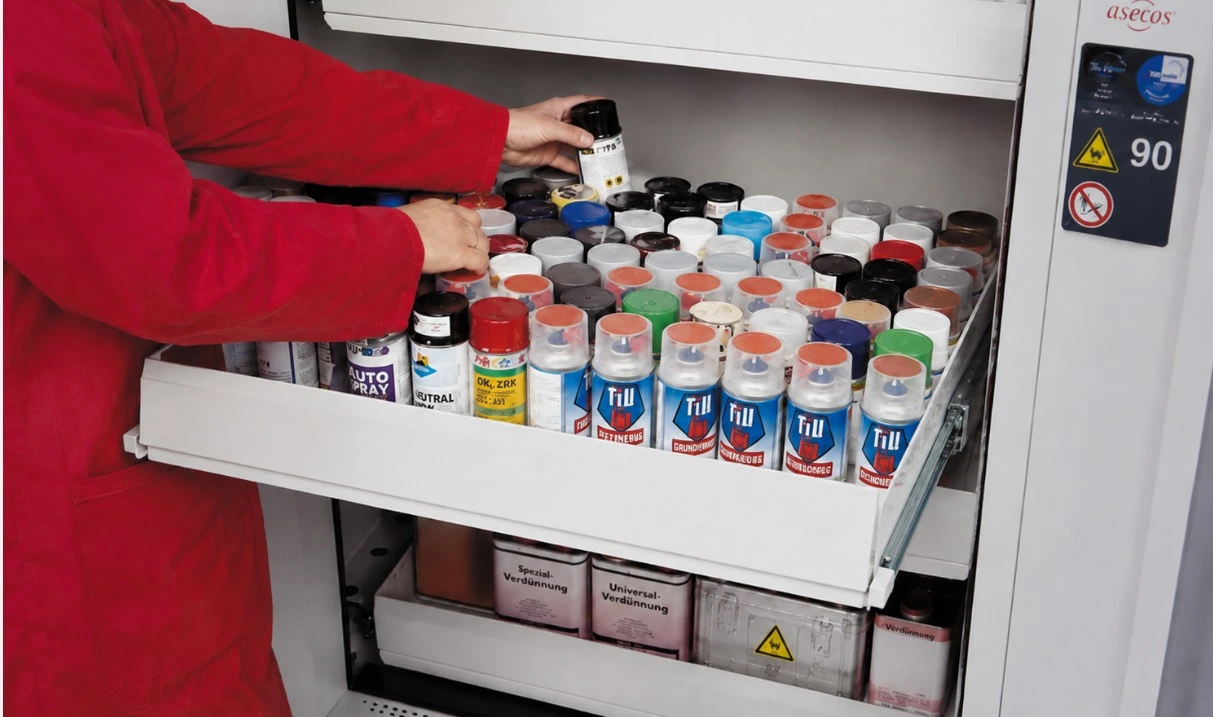

Drawers for storage
Drawers are the ultimate accessory for more space and convenience.
Complementary Products & Accessories

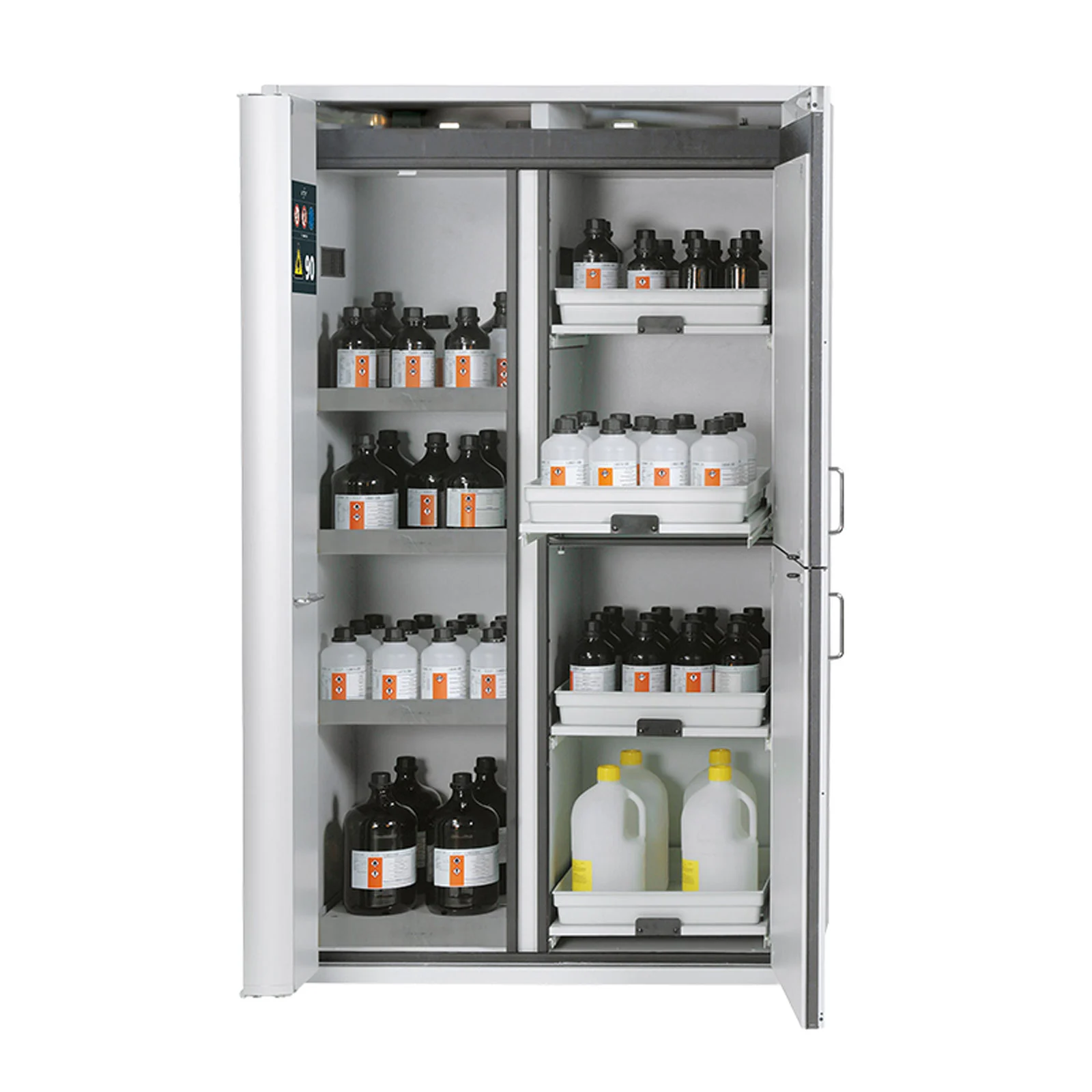

K-line combi cabinet
Combi safety storage cabinets for the combined storage of flammable and non-flammable, aggressive chemicals in separate storage compartments.

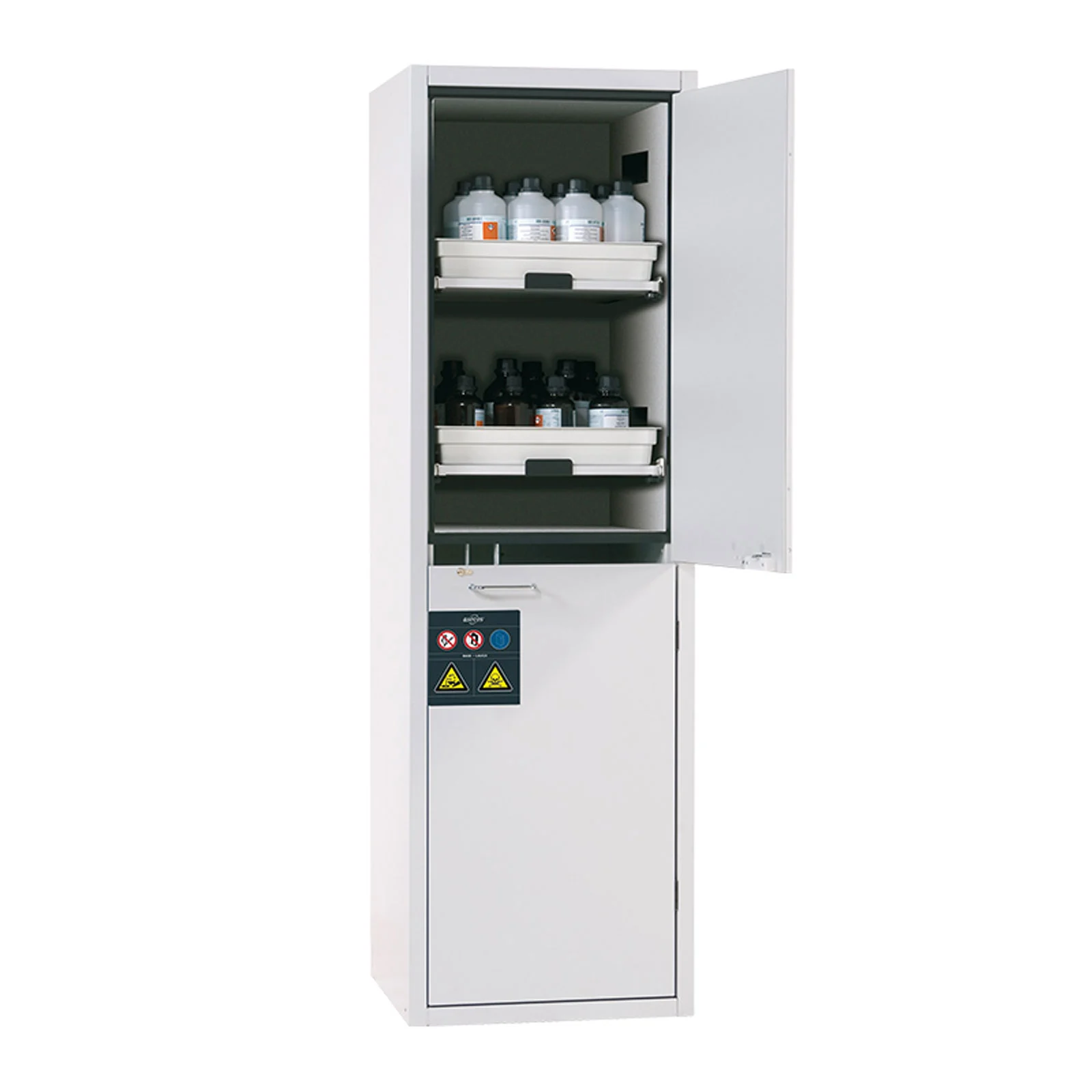

SL cabinet for acid/alkalis
Cabinets for acids and alkalis with corrosion-resistant, sturdy construction and separate storage compartments for acids and alkalis.

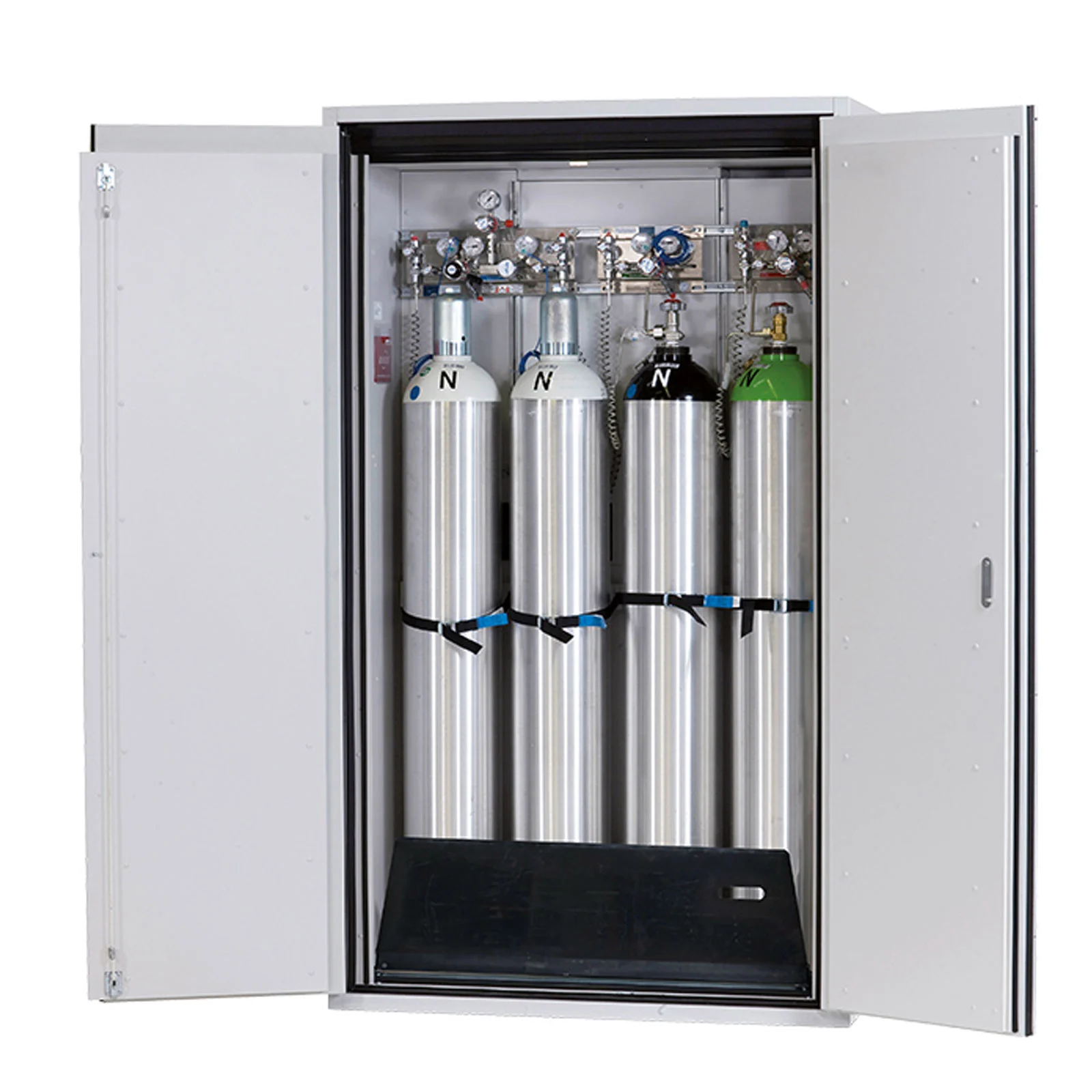

Gas Cylinder Cabinets
Safe storage, provision and dispensing from compressed gas cylinders.
Frequently Asked Questions
A Type 90 safety storage cabinet is designed and fire-tested to provide 90 minutes of fire resistance for storing flammable liquids in workrooms. This supports evacuation and emergency response while helping contain the stored hazardous materials during a fire.
The common full-height Q-CLASSIC-90 directions are approximately 60, 90 and 120 cm wide. Final dimensions, storage capacity, door arrangement and interior equipment depend on the selected model.
Yes. Depending on the model, the cabinet can be configured with shelves, pull-out drawers, storage boxes, collecting sumps and related inserts. CWTC should review the container sizes, quantities and segregation needs before selection.
Q-LINE cabinets are available in several body and door colour combinations, subject to the selected model and current asecos options. Colour can support facility identification, zoning or visual management.
The classification refers to the tested fire-resistance period. Type 30 cabinets provide 30 minutes, while Type 90 cabinets provide 90 minutes under EN 14470-1. The required type should follow the facility risk assessment, applicable regulations and EHS policy.
No. FM 6050 and UL/ULC 1275 approvals apply only to designated tested Q-CLASSIC-90 configurations. The exact approval must be verified on the official data sheet and quotation for the selected model.
OSHA and NFPA are commonly referenced in American-style flammable-storage guidance, while EN 14470-1 classifies fire-resistant safety cabinets through a furnace fire test. Selected asecos configurations also meet specified American requirements, but the applicable standard and exact certification must be confirmed for the project.
The requirement depends on the stored chemicals, room ventilation and site risk assessment. Q-CLASSIC-90 cabinets can be connected to technical extraction, while compatible recirculating filtration may be considered where appropriate.
Yes. CWTC supports cabinet selection, quotation, supply, delivery and installation coordination, accessory selection, ventilation or filtration discussion and after-sales support in Pakistan.
CWTC Supply, Audit Support & After-sales Service
CWTC supports asecos Q-CLASSIC-90 projects in Pakistan with EHS and application discussion, cabinet-size and interior selection, quotation, supply, delivery and installation coordination, ventilation or filtration review, operator guidance and after-sales support. Final selection should consider the chemical inventory, container sizes, fire-load assessment, segregation requirements, room ventilation, applicable standards and exact model certification.
Official asecos Resources & Downloads
Product documents
- asecos Q-LINE and Q-CLASSIC-90 Selection Brochure
- Q-LINE Safety Storage Cabinet Operating Instructions
- asecos Main Catalogue
- asecos Safety Video Portal
Safety and compliance resources
Discuss Your Flammable-Liquid Storage Requirement
CWTC can help review the chemical inventory, container sizes, required cabinet width, shelves or drawers, spill-containment needs, ventilation or filtration strategy and applicable fire-safety documentation for an asecos Q-CLASSIC-90 project in Pakistan.
