BUCHI ProxiScout™ Portable NIR Analyzer in Pakistan
Rapid, non-destructive, multi-parameter analysis directly in the field, at incoming-goods reception, inside warehouses, beside production lines and at quality-control checkpoints.
ProxiScout brings NIR analysis to the sample instead of requiring every sample to be sent to a central laboratory. It is designed for immediate decisions on material composition, conformity, segregation and process adjustment.
- Results within seconds; the instrument supports 2-second scans, while total analysis time depends on the sample and selected model.
- Measure several validated parameters from one scan, such as moisture, protein, fat, ash or starch.
- Portable 1 kg format for field, warehouse and production-area use.
- Broad 1,350–2,550 nm spectral range for sensitive multi-parameter NIR analysis.
- No routine reagents, solvents or destructive sample preparation for the NIR measurement itself.
Supplied and supported in Pakistan by Continental Worldwide Trading Company (CWTC).
BUCHI ProxiScout Portable NIR – Rapid Analysis Demonstration | CWTC Pakistan
Key Features & Practical Benefits
Results in Seconds
A scan can be completed in approximately two seconds, allowing fast decisions on acceptance, segregation, formulation or process adjustment.
Multi-Parameter Analysis
One validated spectrum can predict several properties such as moisture, protein, fat, ash, starch or other application-specific parameters.
Minimal Sample Preparation
Many materials can be scanned directly or presented using reusable powder, liquid or rotator accessories.
Portable In-Field Operation
The 1 kg handheld format moves between fields, warehouses, trucks, raw-material reception and production checkpoints.
Low Routine Cost per Sample
The NIR measurement itself does not require routine reagents, solvents or destructive wet-chemistry consumables.
Wide Portable Spectral Range
The 1,350–2,550 nm range captures important overtone and combination bands used in quantitative and qualitative NIR models.
Offline Result Availability
The mobile workflow can provide results even when an internet connection is unavailable.
Rugged Construction
IP65 protection and MIL-PRF-2800 Class 2 positioning support demanding field and industrial use.
Centralized Data and Model Management
The cloud platform can support remote access, calibration updates, device management and collaboration across sites.
Application Examples
Flour and Milling
Rapid flour analysis for moisture, protein, ash, starch and gluten. Useful for incoming wheat evaluation, flour grading, blending decisions and quick checks near milling or packing operations.

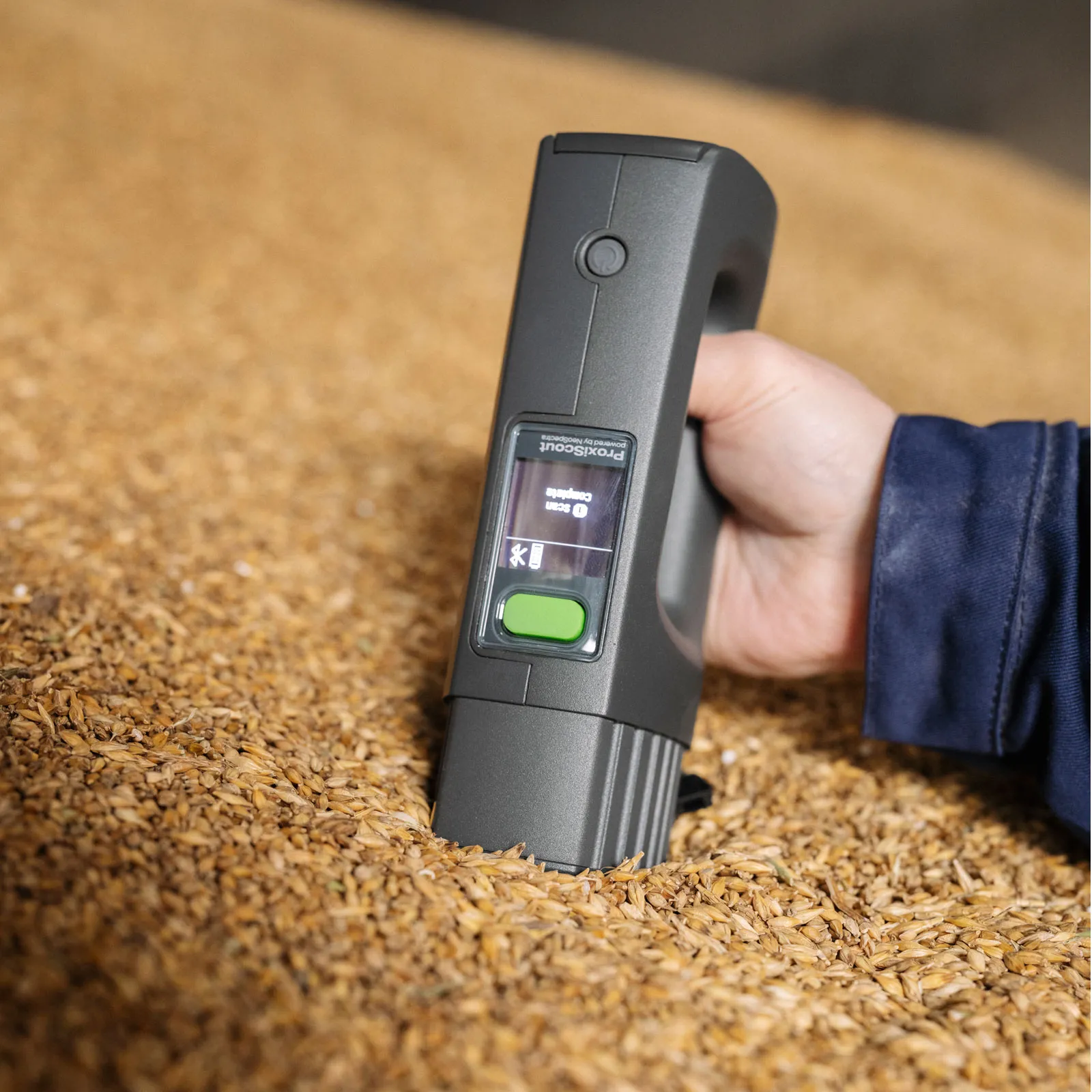

Grains and Cereals
Portable analysis of wheat, maize, rice, barley, soybeans and other grains for parameters such as moisture, protein, starch, ash or oil, depending on the validated model. Supports lot segregation, supplier payment and receiving decisions.
Feed, Forage and Feed Ingredients
Field or plant-floor analysis of raw materials, premixes and finished feed for moisture, protein, fat, ash, fiber, ADF/NDF and other nutritional parameters where suitable calibrations are available.
Edible Oils and Liquid Products
With the liquid kit, selected applications can target free fatty acids, acidity, authentication, adulteration, saturation-related properties and moisture, subject to the available calibration and matrix.
Dairy and Ingredients
Rapid fat, moisture, protein, lactose, total solids and composition testing in selected dairy including powdered milk. Useful when production teams need immediate results rather than waiting for central laboratory turnaround.
Soil, Fertilizer and Environmental Screening
Rapid on-site screening for soil moisture, organic carbon and total nitrogen, plus fertilizer-formulation applications.
Key Product Features
| Primary parameters | Vary with samples but include moisture, protein, ash, starch, total solids, total nitrogen, gluten, lactose, oil content, acidity etc., |
| Wavelength range | 1,350–2,550 nm (7,400–3,920 cm⁻¹) |
| Resolution | 16 nm at 1,500 nm, FWHM criterion |
| Typical SNR | 2,000:1 at 2,350 nm with a 2-second scan |
| Sample coverage | Approximately 10 mm diameter collected-light beam |
| Dimensions | 178 × 91 × 62 mm |
| Weight | Approximately 1 kg |
| Operating temperature | −5 to +40 °C |
| Ingress protection | IP65 |
| Ruggedness | MIL-PRF-2800 Class 2 positioning |
| Battery | Two rechargeable, user-replaceable 18650 batteries |
| Battery capacity | Up to approximately 800 scans per charge using 2-second scans |
| Charging | USB-C; brochure states approximately 6 hours at 1 A to full charge |
| Wireless connectivity | Bluetooth V4.2 BLE |

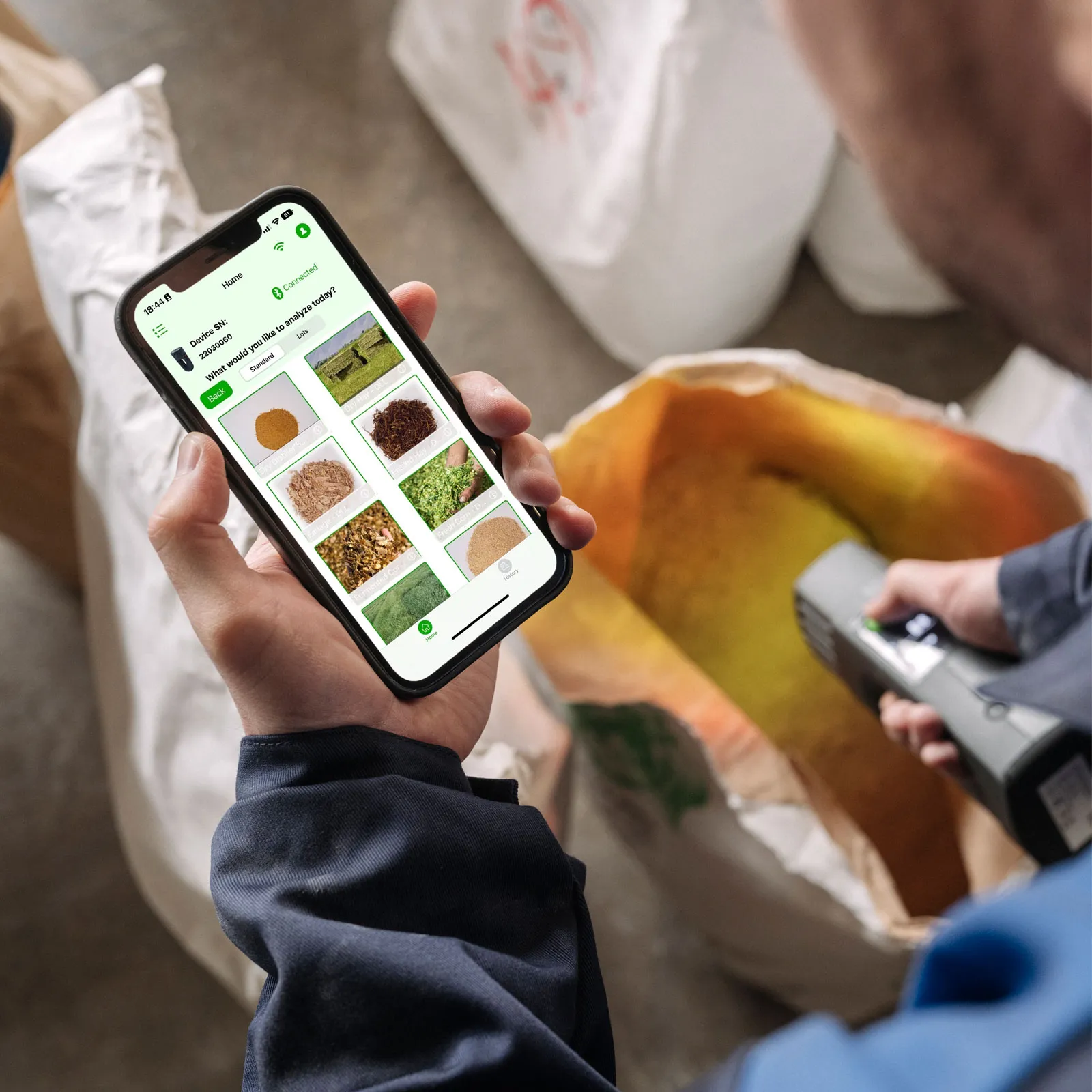

| Operation | Mobile applications; results can be available offline |
| Data/model platform | NeoSpectra Cloud Portal for centralized data, model and device management |
Sampling Accessories & Configuration Options

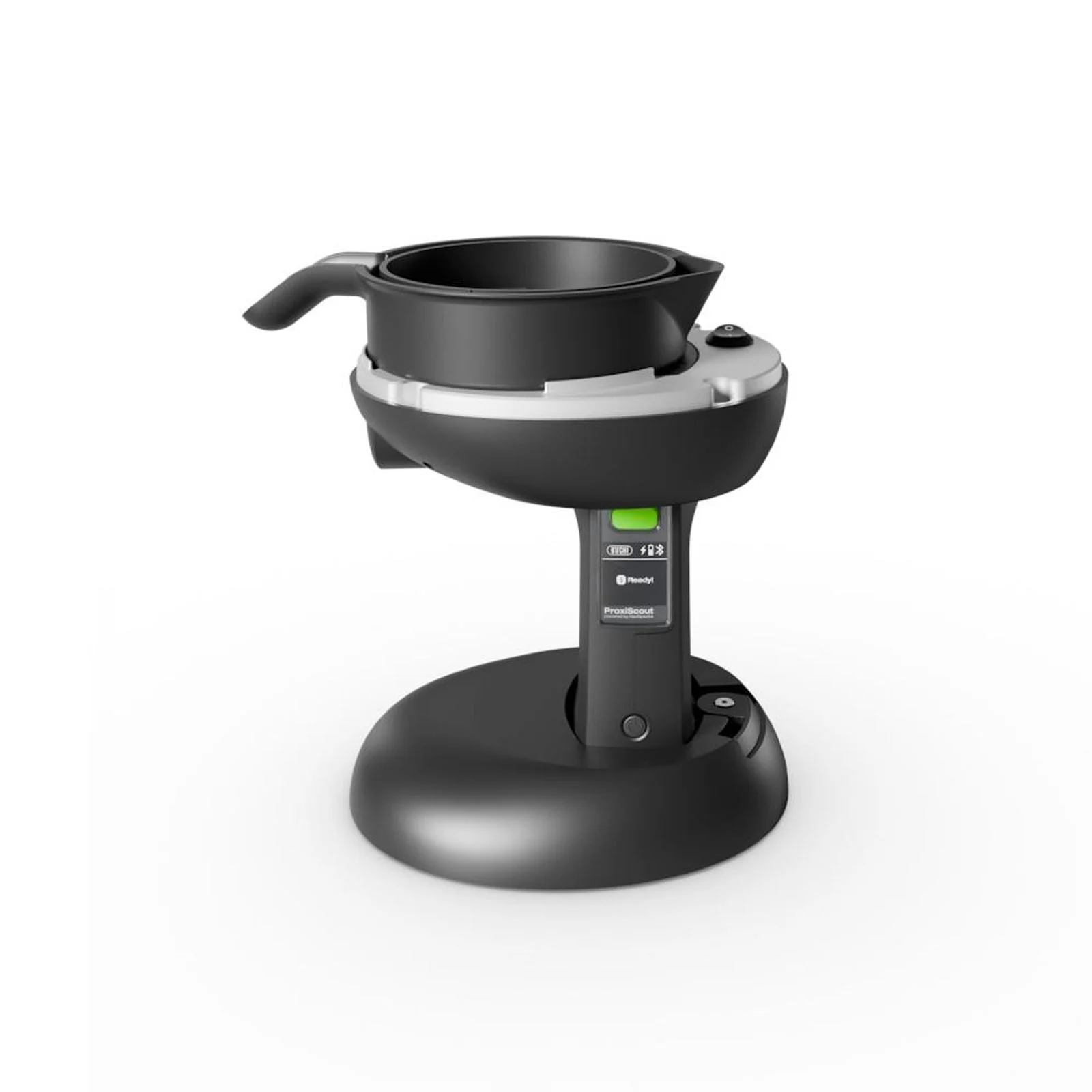

Rotator Kit

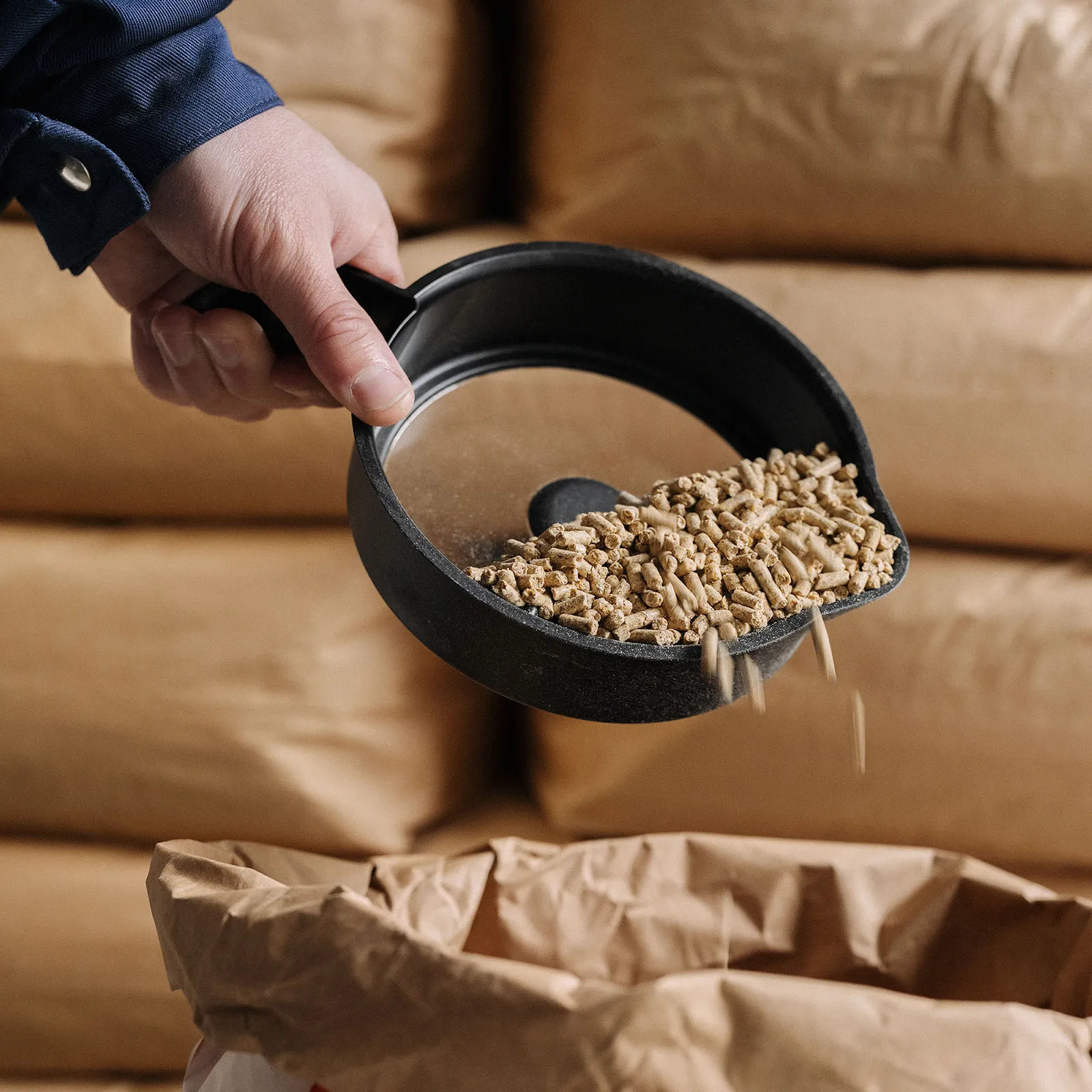

A rotating cup securely holds and moves non-homogeneous or granular solids over the device, enlarging the sampled area. Best for grains, seeds, silage, haylage and processed feed.

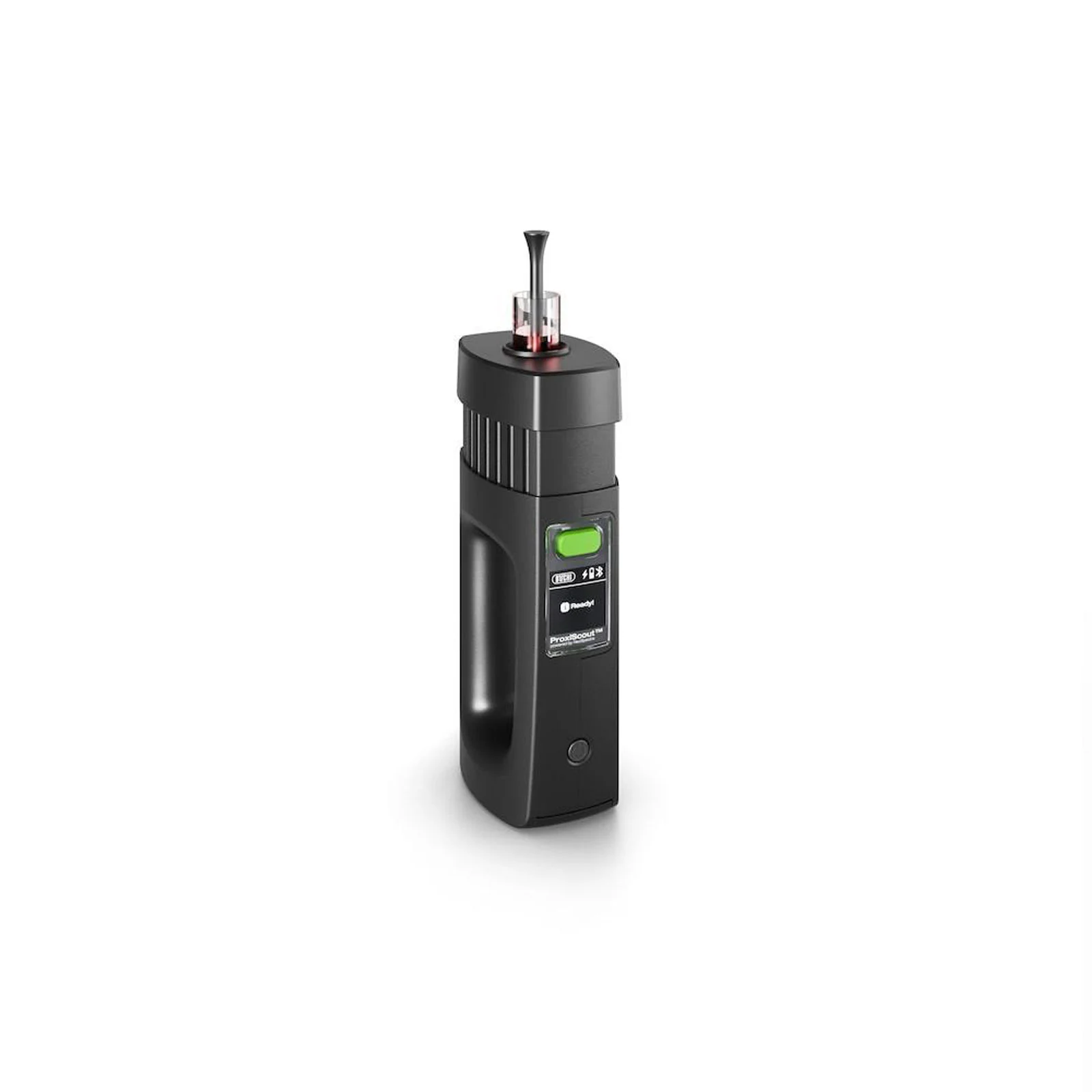

Liquid Analysis Kit
Includes vials and transflectance accessories for different path lengths. Best for clear and opaque liquids such as oils and milk.

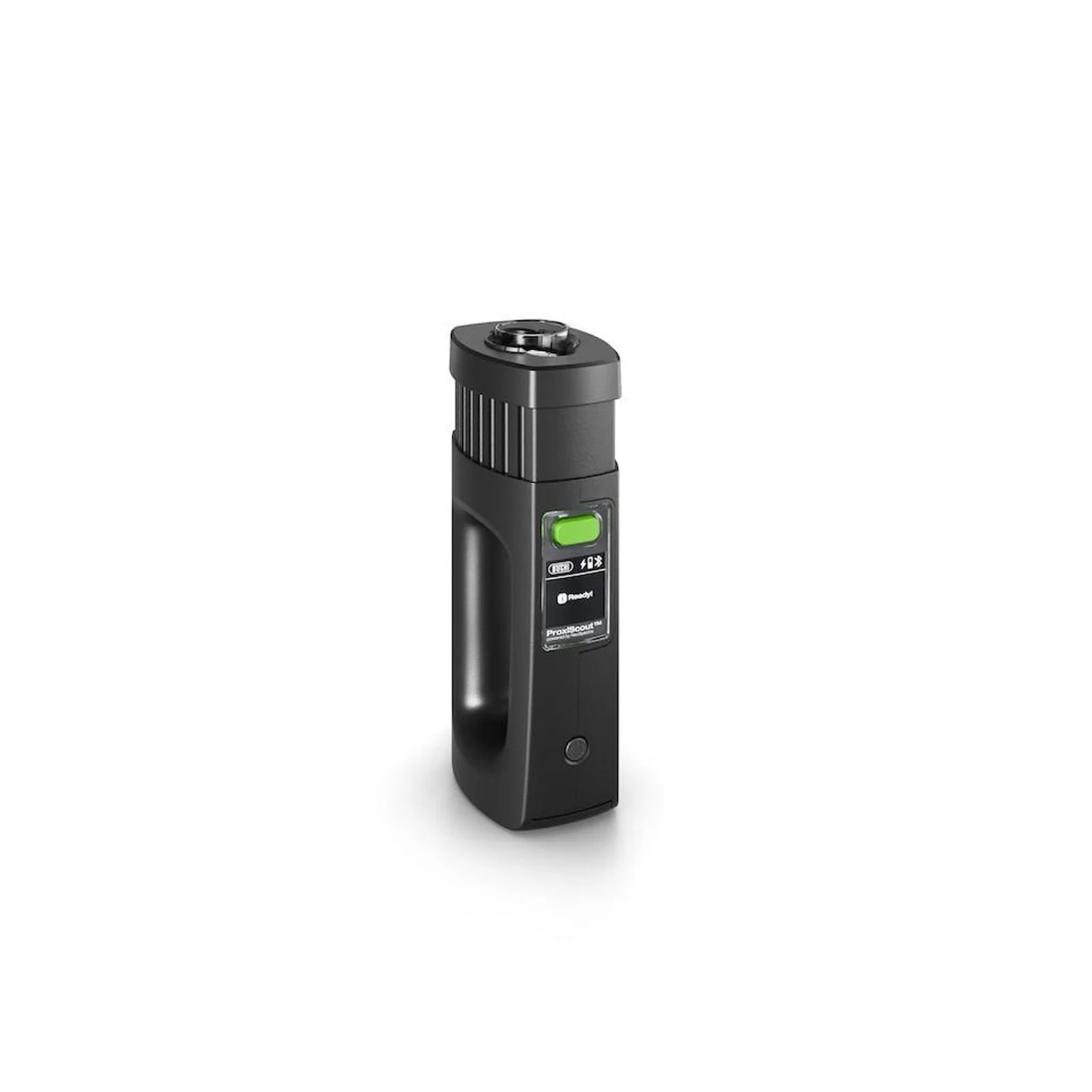

Powder Analysis Kit
Uses precision dishes and weights to create consistent sample presentation. Best for powders and finely ground solids such as flour, powdered milk and ground grains.
Complementary Products and Related NIR Solutions

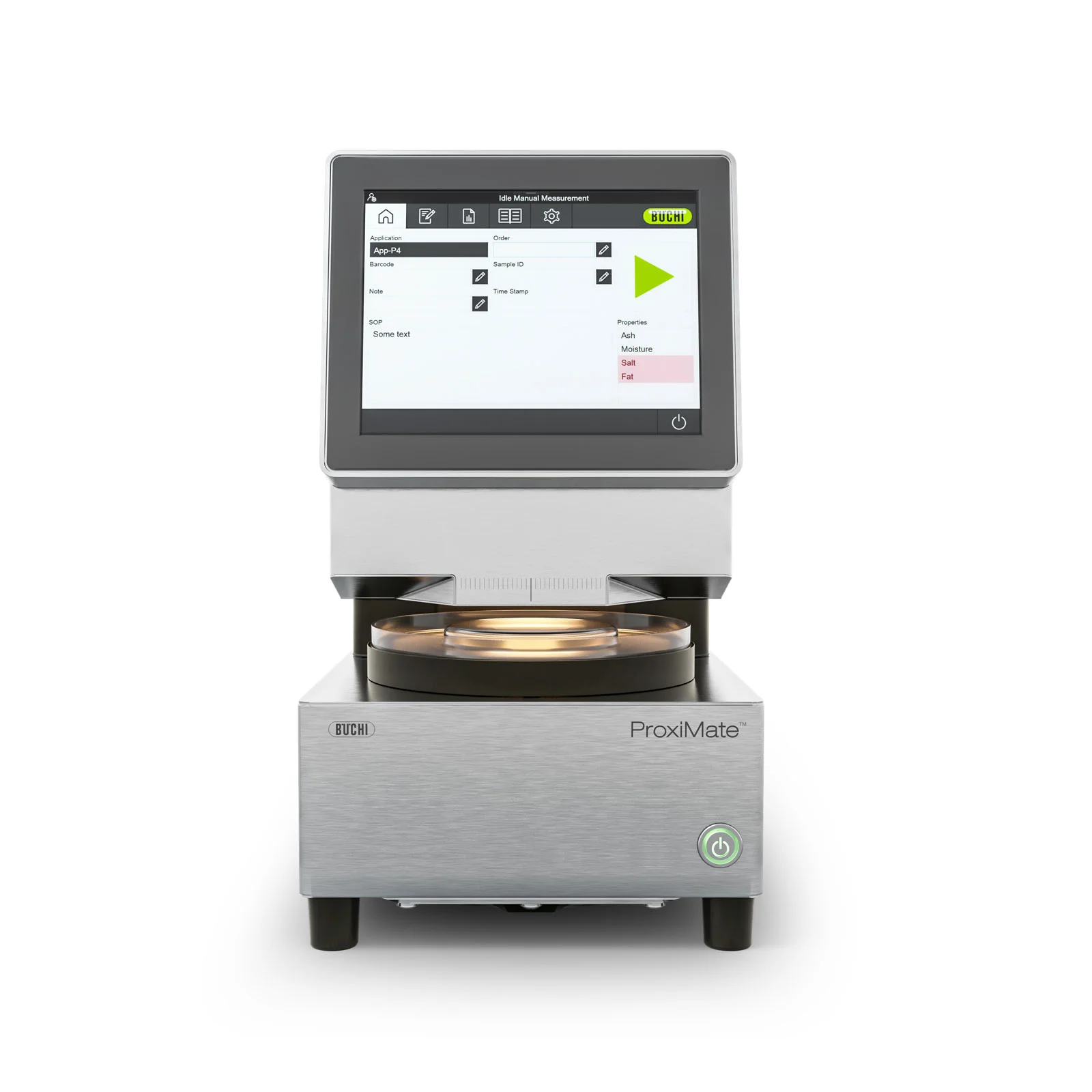

BUCHI ProxiMate™
At-line NIR system for food and feed plants requiring a robust fixed analyzer and simple routine operation.

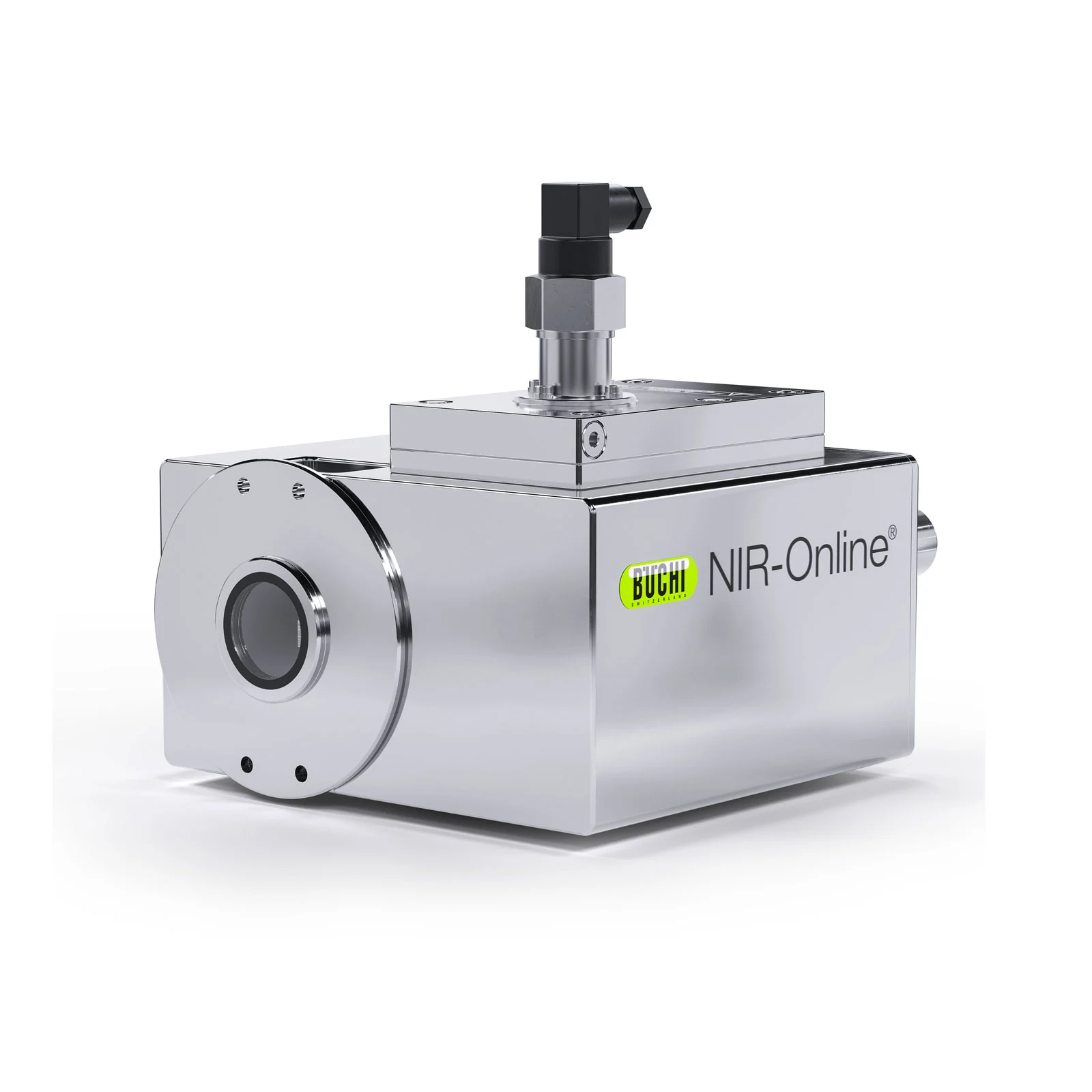

BUCHI NIR-Online X-Sential™ SE
Fit-for-purpose process sensor for continuous monitoring of selected basic production parameters.

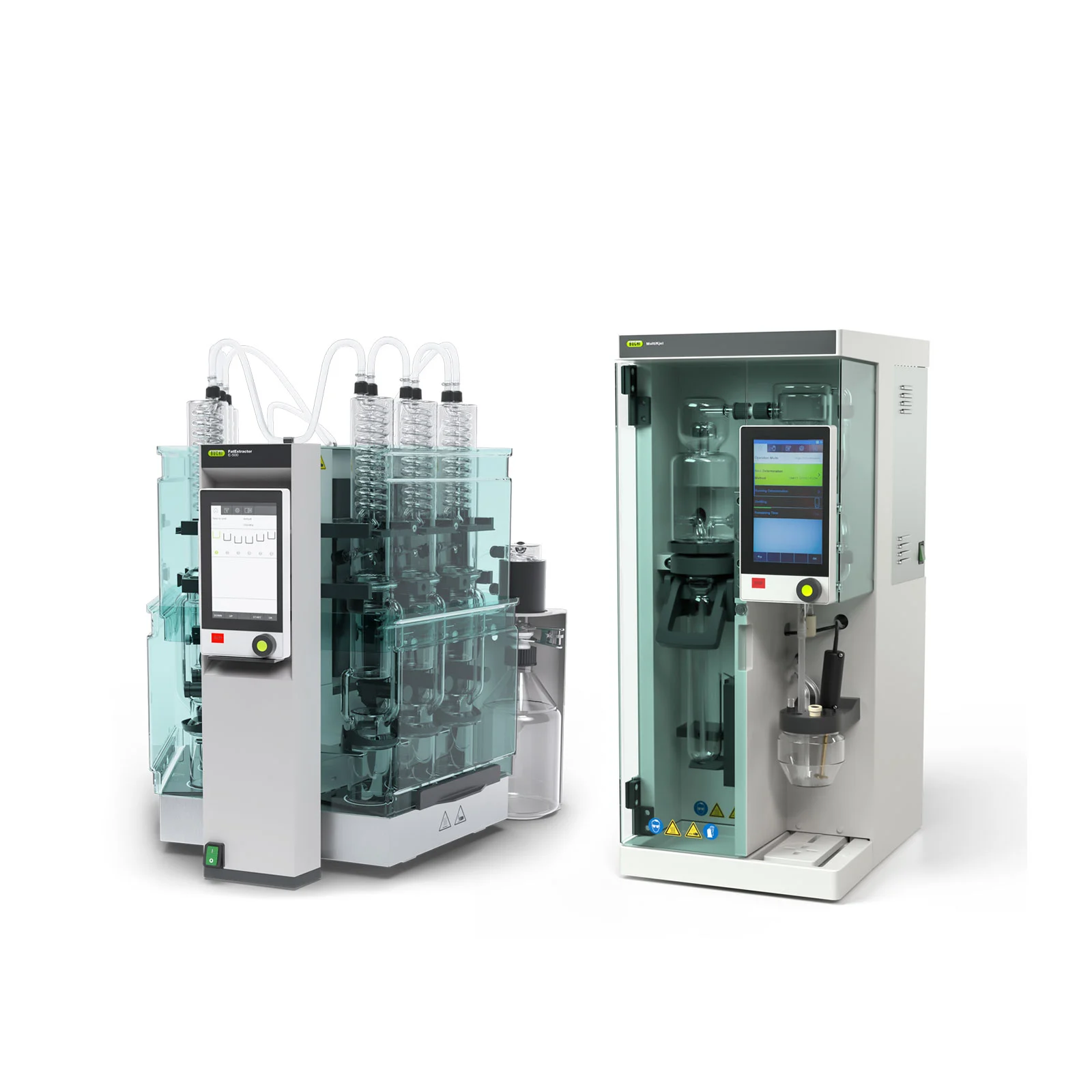

Reference Methods
Kjeldahl, extraction, oven moisture and other laboratory methods remain important for calibration development, validation and periodic verification.
Frequently Asked Question
The number of applications the ProxiScout NIR can perform are limitless, if you have enough data about your application belonging to testing of specific ingredients/raw materials/finished goods in liquid/solid/semi solid form, contact us and we can guide you through the application development process.
The NIR measurement itself does not require routine chemical reagents, extraction solvents or destructive wet-chemistry consumables. Reusable accessories are used for sample presentation, although vials, cleaning materials and normal handling items may still be required.
It can substantially reduce routine testing time and increase testing frequency. Reference methods remain necessary for calibration development, validation, dispute resolution and periodic performance checks.
Yes, selected food and dairy matrices can be analyzed for fat and other composition parameters when a suitable validated calibration exists. The customer’s product range and reference results must be reviewed.
Yes. Potential parameters include moisture, protein, ash, starch, gluten and oil depending on the material and calibration. The powder kit is suitable for ground samples, while the rotator is valuable for granular or heterogeneous samples.
ProxiScout can support rapid NIR screening of soil and fertilizer properties where validated models exist. BUCHI specifically lists soil moisture, organic carbon, total nitrogen and fertilizer formulation. Phosphorus and potassium are indirect, application-specific predictions and must be confirmed through feasibility and validation.
Yes. BUCHI states that results can be obtained through the mobile application even when offline. Data can be synchronized when connectivity becomes available.
ProxiScout is a handheld portable analyzer for field and mobile checkpoints. ProxiMate is a fixed at-line analyzer designed mainly for routine food and feed plant use.
Use the rotator for non-homogeneous or granular solids, the powder kit for finely ground materials and the liquid kit for clear or opaque liquids. CWTC should review the sample before final configuration.
Local supply and support in Pakistan
CWTC can support the ProxiScout project from the first application discussion through sample feasibility, configuration, training and routine implementation in Pakistan.
- Application review based on the customer’s rapid-testing bottleneck and decision point.
- Selection of direct, rotator, liquid or powder sample presentation.
- Review of representative sample variability, seasons, suppliers, grades and product ranges.
- Assessment of available reference-method data for calibration or validation.
- Coordination of suitable existing calibration models or custom calibration development.
- Installation, user training and measurement-workflow development.
- Performance verification using customer samples and agreed acceptance criteria.
- Support for additional products, parameters or sites after the first application is established.
- Preventive maintenance, troubleshooting and coordination with BUCHI application resources.
Product selectionApplication consultationDemonstrationInstallationOperator trainingTechnical support
Documentation & Downloads
Use the official BUCHI resources below for the latest technical specifications, manuals and product documentation.
- Official ProxiScout product page
- ProxiScout product brochure
- ProxiScout operating manual
- Application Note: Onsite Milk Analysis with ProxiScout
- Application Note: On-Site Soybean Quality Analysis with ProxiScout
- Application Note: On-Site Sugar Content Analysis in Cereal
- Application Note: Conformity Testing in Milk Powders with ProxiScout
