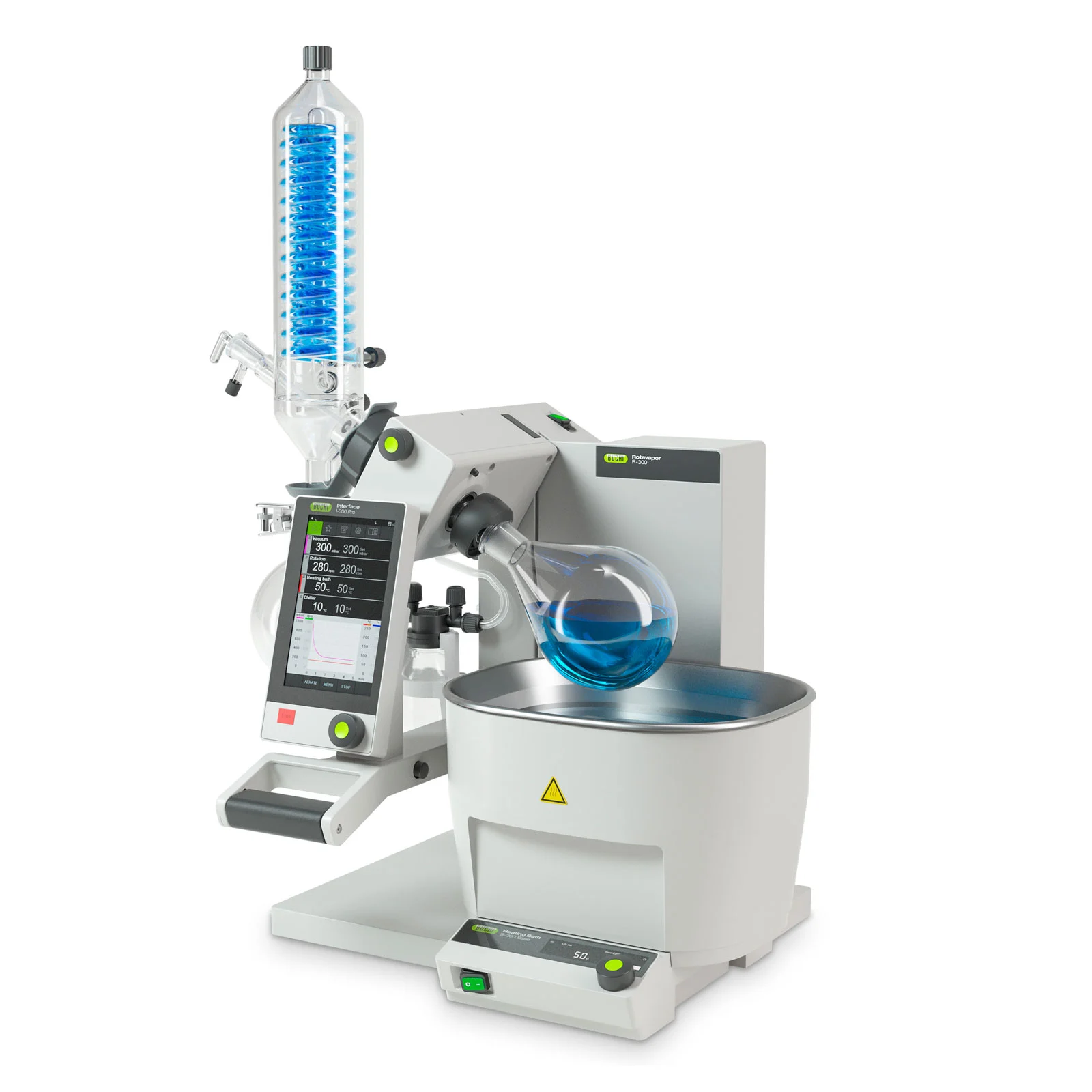

BÜCHI Rotavapor® R-300
Versatile rotary evaporation platform for laboratory solvent removal, sample concentration, distillation, drying and reflux applications.
The Rotavapor R-300 can be used as a stand-alone rotary evaporator or configured as an integrated evaporation system with BÜCHI vacuum, cooling and control components. Its modular design allows the system to be selected around the laboratory's solvent, flask size, temperature, condenser, documentation and automation requirements.
- Modular rotary evaporation platform for routine solvent removal, concentration, distillation and drying.

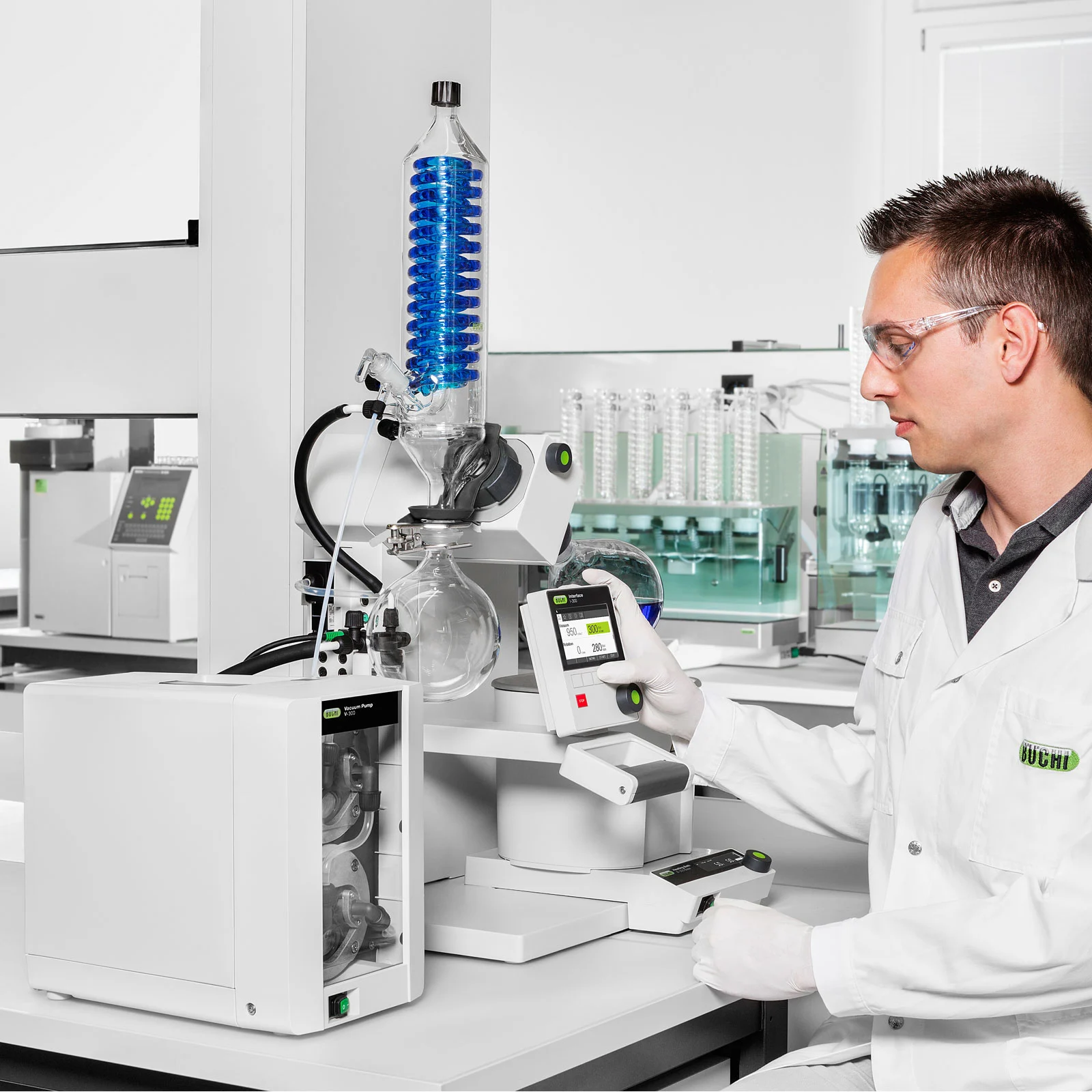

- Available as a stand-alone unit or as part of a fully integrated evaporation system.
- Integration with BÜCHI vacuum pumps, recirculating chillers and system controllers.
- Centralized control of rotation, heating, vacuum and cooling when configured as an integrated system.
- Suitable for pharmaceutical, chemical, food, academic, research and industrial laboratories.
- Flexible configuration of condenser, flask size and accessories according to the required application.
Supplied and supported in Pakistan by Continental Worldwide Trading Company (CWTC).
Key Features
Modular system architecture
The user can begin with the required system scope and add control, cooling, sensing or automation according to the workflow.
Flask capacity up to 5 L
Suitable for laboratories processing larger sample or solvent volumes.
Heating up to 220 °C
Extends the system beyond routine water-bath evaporation into applications requiring higher bath temperatures.
Wide condenser selection
The system can be selected according to solvent properties and workflow rather than forcing every application into one glass configuration.
Centralized system control
Improves consistency, operator convenience and control of routine distillation workflows.
Sensor and automation options
Helps reduce manual intervention and improves control of more demanding evaporation processes.
Where the Rotavapor R-300 fits in laboratory workflows
Reaction Work-Up & Solvent Removal
Supports reaction work-up, solvent removal, concentration, recrystallization and reflux processes with flexible glassware, temperature control and operating options.
Concentration of Extracts
Provides controlled reduction of solvent volume after sample extraction and before instrumental analysis, supporting repeatable sample-preparation workflows.
Extract Concentration & Solvent Recovery
Concentrates extracts, removes solvents and recovers volatile components with configurable temperature, condenser and system control for different applications.
Key Product Features
| Specification | Value |
|---|---|
| Product Type | Laboratory rotary evaporator |
| Maximum Evaporating Flask Size | Up to 5 L with Heating Bath B-305 |
| Rotation Speed Range | 10–280 rpm |
| Maximum Heating Bath Temperature | Up to 220 °C with Heating Bath B-305 |
| Heating Medium | Water or oil with B-305 |
| Heating Bath B-305 Capacity | 5.5 L |
| Heating Bath B-305 Heating Power | 1300 W |
| Bath Temperature Adjustment Accuracy | ±1 °C |
| Dimensions with V Glass Assembly | 607 × 429 × 947 mm |
| Weight | 13.5 kg with electric lift; 13.0 kg with manual lift |
| Vertical Adjustment Range | 220 mm |
| Immersion-Angle Adjustment | 10–50° |
| Power Supply | 100–240 VAC ±10% |
| Frequency | 50/60 Hz |
| Ingress Protection | IP21 |
| Available Lift Direction | Electric or manual, depending on configuration |
| Main Control Options | Stand-alone, Interface I-300 or Interface I-300 Pro |
| Condenser Direction | Multiple glass assemblies available according to application |
Complementary Products

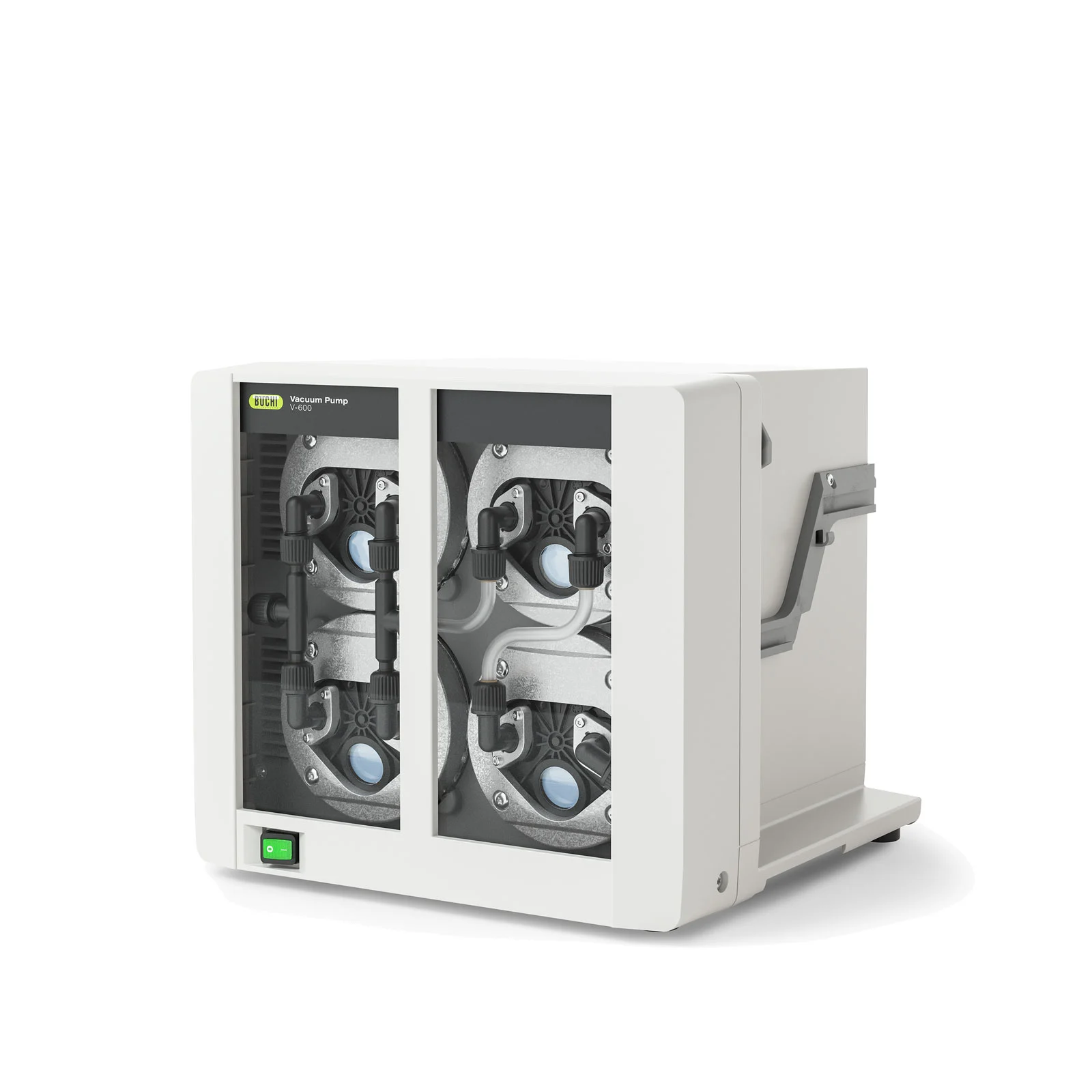

Vacuum Pump V-300 / V-600
Chemically resistant vacuum pumps for reliable pressure generation and controlled evaporation workflows.
Explore vacuum pumps →

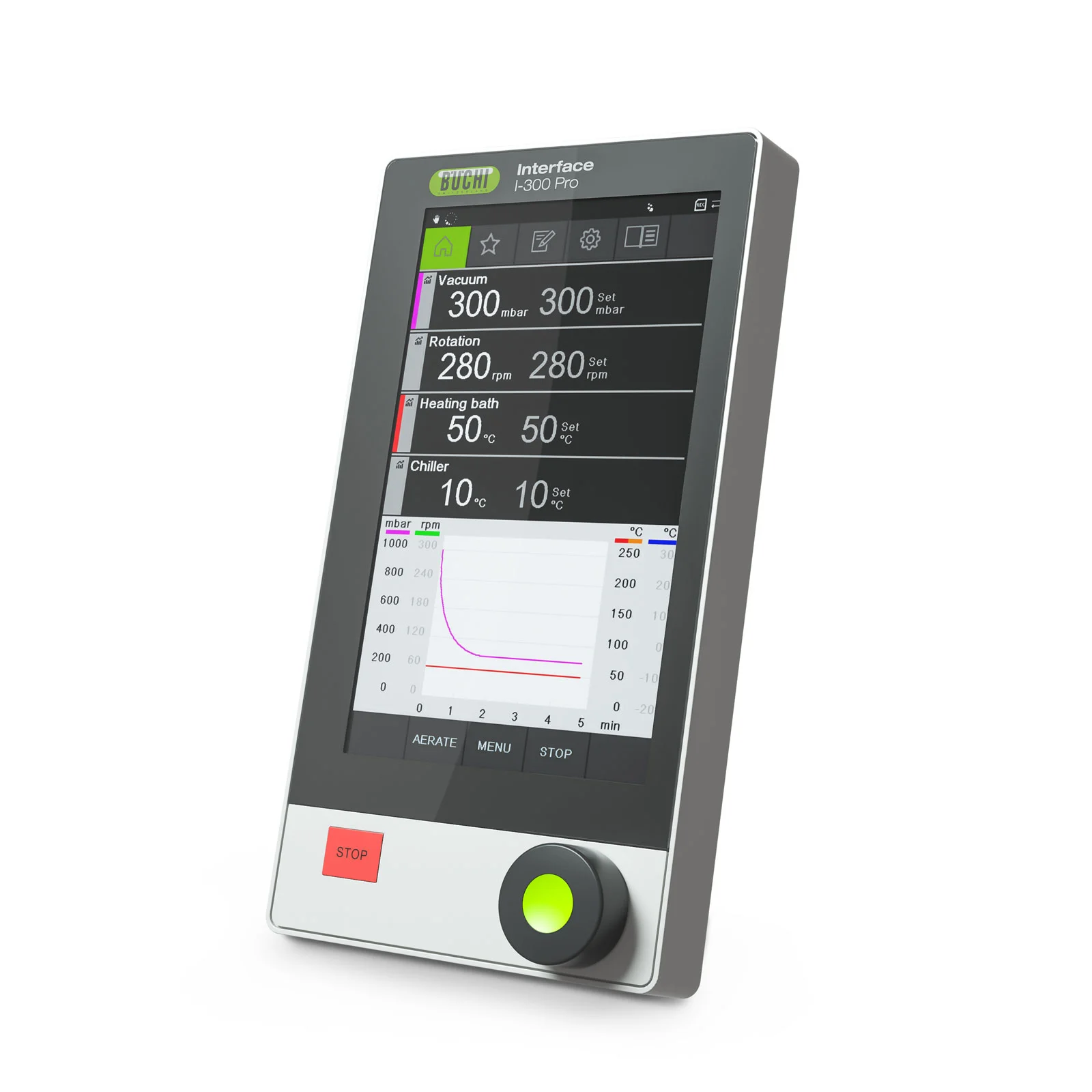

Interface I-300 / I-300 Pro
Central control interfaces for compatible R-300 system components and automated operating functions.
Explore interfaces →
Recirculating Chillers
Closed-loop cooling systems selected according to condenser type, solvent load and required cooling capacity.
Explore chillers →
Glassware, Sensors & Accessories
Available items include evaporating and receiving flasks, condenser assemblies, vacuum seals, foam sensors, vapor-temperature sensors, protection shields, tubing and related evaporation accessories.
Discuss accessories →Frequently Asked Question
The R-300 can support evaporating flasks up to 5 L when configured with the B-305 heating bath. Smaller flask sizes can also be used according to the selected glassware and application.
Yes. The B-305 heating bath supports water or oil and can operate up to 220 °C. The selected temperature and heating medium must be suitable for the application and laboratory safety requirements.
No. The R-300 is modular. A stand-alone configuration can be used without full system automation. Integrated control, dynamic distillation, sensor compatibility and programmable methods depend on the selected interface and supporting system components.
Both interfaces support centralized control, solvent-library functions, dynamic distillation and compatible sensors. The I-300 Pro additionally supports programmable methods, guided operation and a larger display.
The condenser depends on the solvent, boiling point, available cooling source, laboratory height, reflux requirement and whether the sample is prone to foaming or bumping. CWTC should review the application before confirming the glass assembly.
The R-80 is intended for compact routine evaporation with flasks up to 1 L. The R-180 supports routine evaporation with flasks up to 3 L. The R-300 supports flasks up to 5 L, higher-temperature operation and a wider range of automation, condenser and sensor options.
Yes. CWTC can provide system-selection support, installation, operator training and after-sales technical support according to the supplied configuration and service scope.
Local supply and support in Pakistan
CWTC supports BUCHI Rotavapor R-300 customers in Pakistan with product selection, system configuration, quotation, supply, installation, operator training, glassware and accessory selection, preventive maintenance and technical support.
Product selectionTypical sample volumeRequired flask sizeRequired bath temperatureCooling arrangementVacuum requirement
Documentation & Downloads
Use the official BÜCHI resources below for the latest technical specifications, product documentation and rotary evaporation application information.
- Official BÜCHI Rotavapor® R-300 Product Page
- BÜCHI Rotavapor® R-300 Brochure
- BÜCHI Rotavapor® R-300 Technical Data Sheet
- Application Note: Unlock Extraction Efficiency with Rotavapor
- Application Note: Quality Improvement of Common Solvents by Distillation Using Rotavapor
- Cannabis: Theory and Applications
