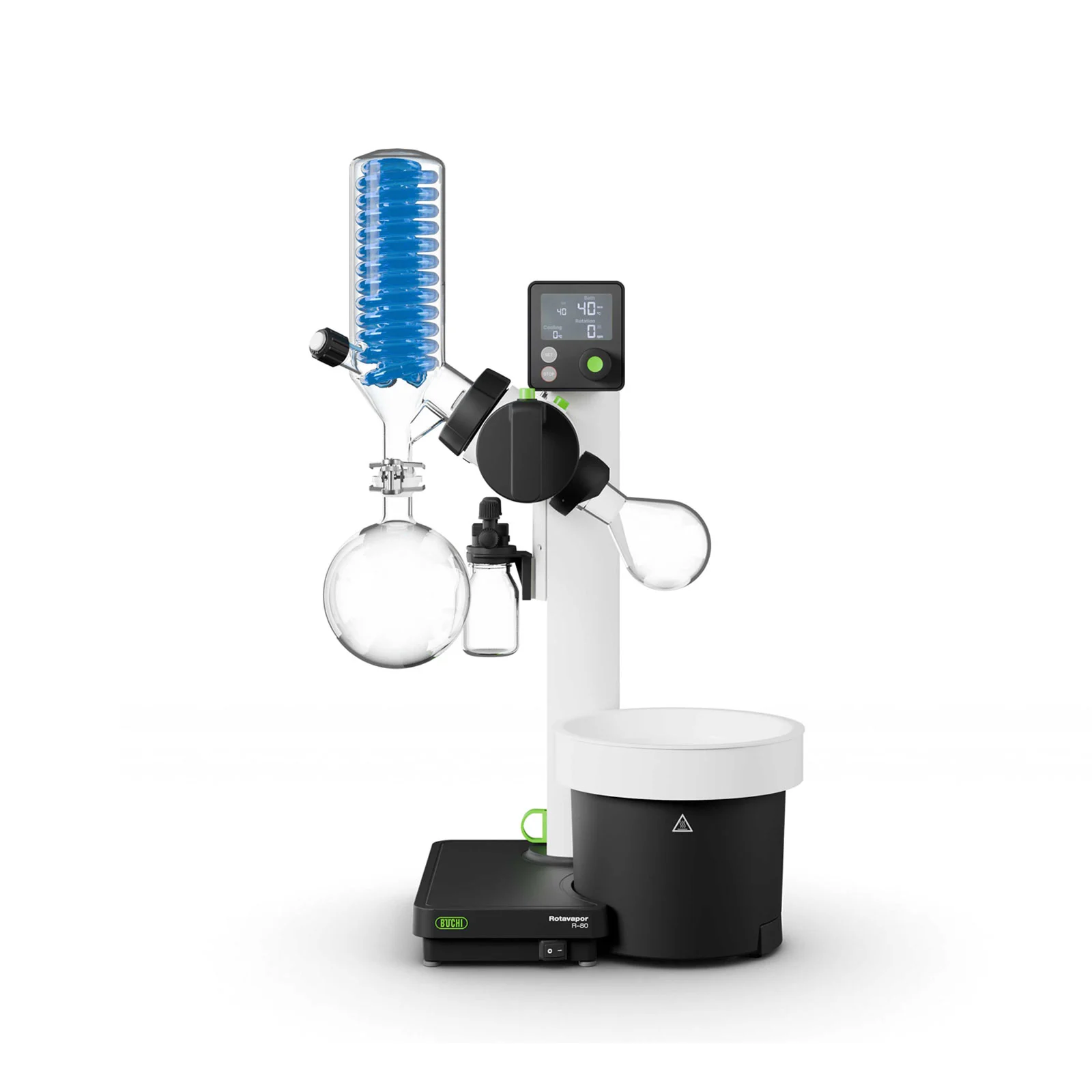

Rotavapor R-80
Compact rotary evaporation for routine solvent removal, sample concentration and laboratory distillation
The BUCHI Rotavapor® R-80 is designed for routine evaporation, concentration and distillation where bench space, straightforward operation and dependable results matter.
– For upto 1L evaporating flask
– Temperature range ambient to 95°C
– Low cost for essential distillation applications
Supplied and supported in Pakistan by Continental Worldwide Trading Company (CWTC).
Key Features
Compact bench footprint
Useful in teaching, QC and R&D laboratories where available bench space is limited
Water-bath operation
Suitable for everyday evaporation applications addressed within its water-bath operating role.

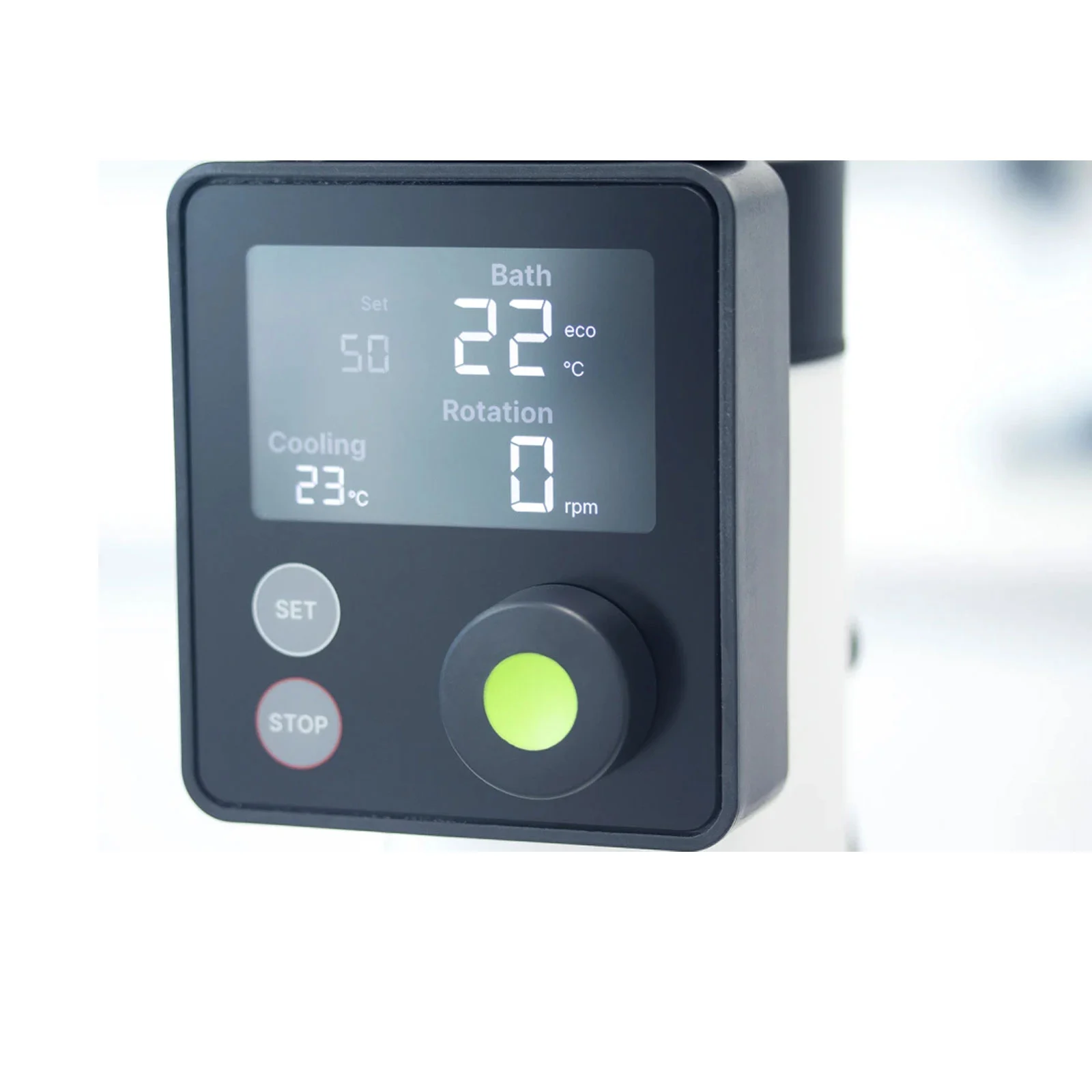

Central user interface
Helps daily users control key routine settings without complex workflows.
Manual lift system
A simple operating approach for regular, small-volume evaporation work.
Modular system path
Can be discussed alongside appropriate vacuum, cooling and glassware choices.
BUCHI ecosystem
Provides a route to complementary items and higher-capacity alternatives where needs evolve.
Where the Rotavapor R-80 fits in laboratory workflows
Reaction Work-Up & Solvent Removal
Routine concentration, distillation or recrystallization tasks after laboratory synthesis and formulation work.
View application →
Concentrating Extracts
Reduction of solvent volume following extraction before further instrumental analysis.
View application →
Routine Laboratory Concentration
Evaporation support for research, development, QC and teaching workflows using small working volumes.
View application →Key Product Features
| Specification | R-80 |
|---|---|
| Dimensions (W x D x H) | 345 mm x 315 mm x 590 mm |
| Display Type | 3" Dark Segment Display |
| Heating Power | 1000W |
| High Temperature cut-out | 140°C |
| Heating Bath Temperature Range | Up to 95°C |
| Heating bath adjustment accuracy | ± 1 °C |
| Heating Bath Capacity | 2L |
| Typical heat-up time (20-80°C) | 14 min |
| Max. Flask size | 1-2L |
| Rotation speed range | 10-330 rpm |

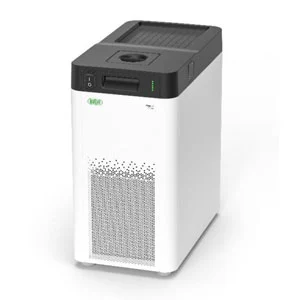

Complementary Products
Frequently Asked Question
The R-80 is positioned for routine evaporation workflows using evaporating flasks up to 1 L. For larger-volume needs, CWTC can guide selection within the BUCHI rotary evaporation range.
The exact scope depends on the selected system and formal quotation. A pump, interface, chiller, glassware and other accessories may be discussed according to the laboratory workflow.
Suitability depends on the solvent, cooling, vacuum control, safety practices and complete laboratory setup.
A larger model may be appropriate where flask capacity, throughput, bath temperature, lift type or automation needs exceed the R-80’s role

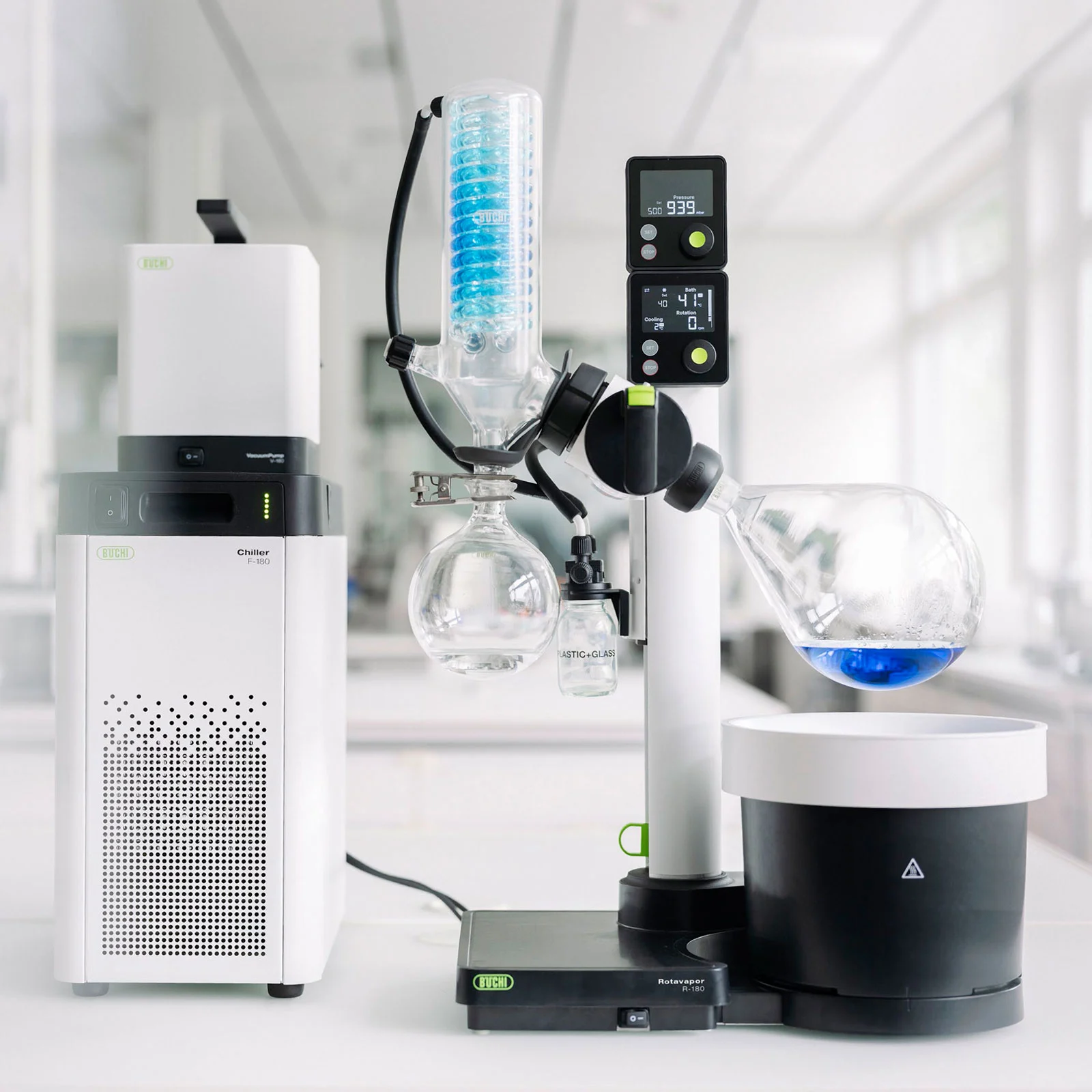

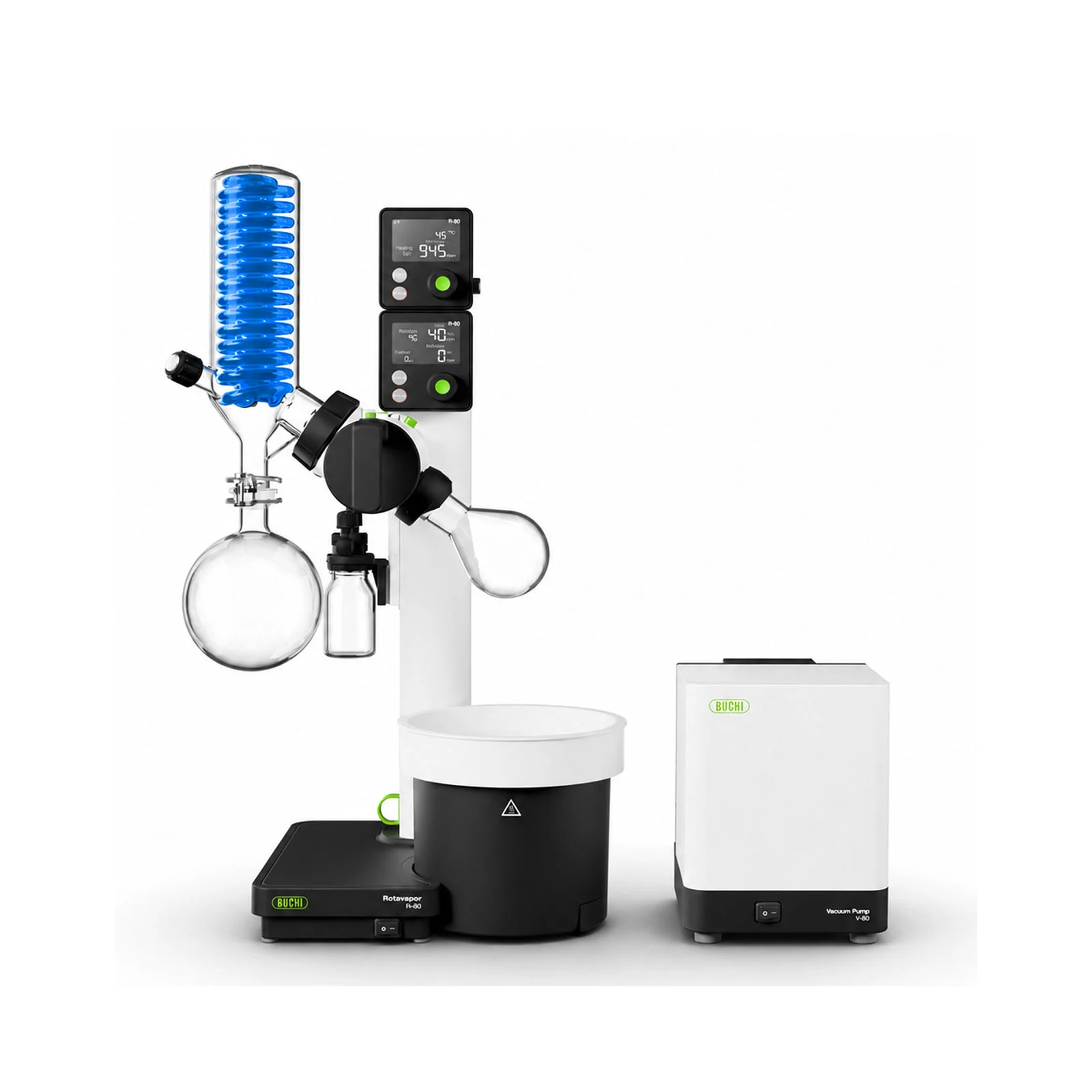

Buchi provides complete integrated system consisting of Rotavapor + Vacuum Pump + Recirculating chiller, however customers can combine existing vacuum pumps and chillers with the R-80 as well.
Local supply and support in Pakistan
CWTC supports R-80 users in Pakistan with product selection, application discussion, quotation, supply, installation where applicable, operator training, accessory selection and after-sales coordination.
Product selectionApplication consultationDemonstrationInstallationOperator trainingTechnical support
