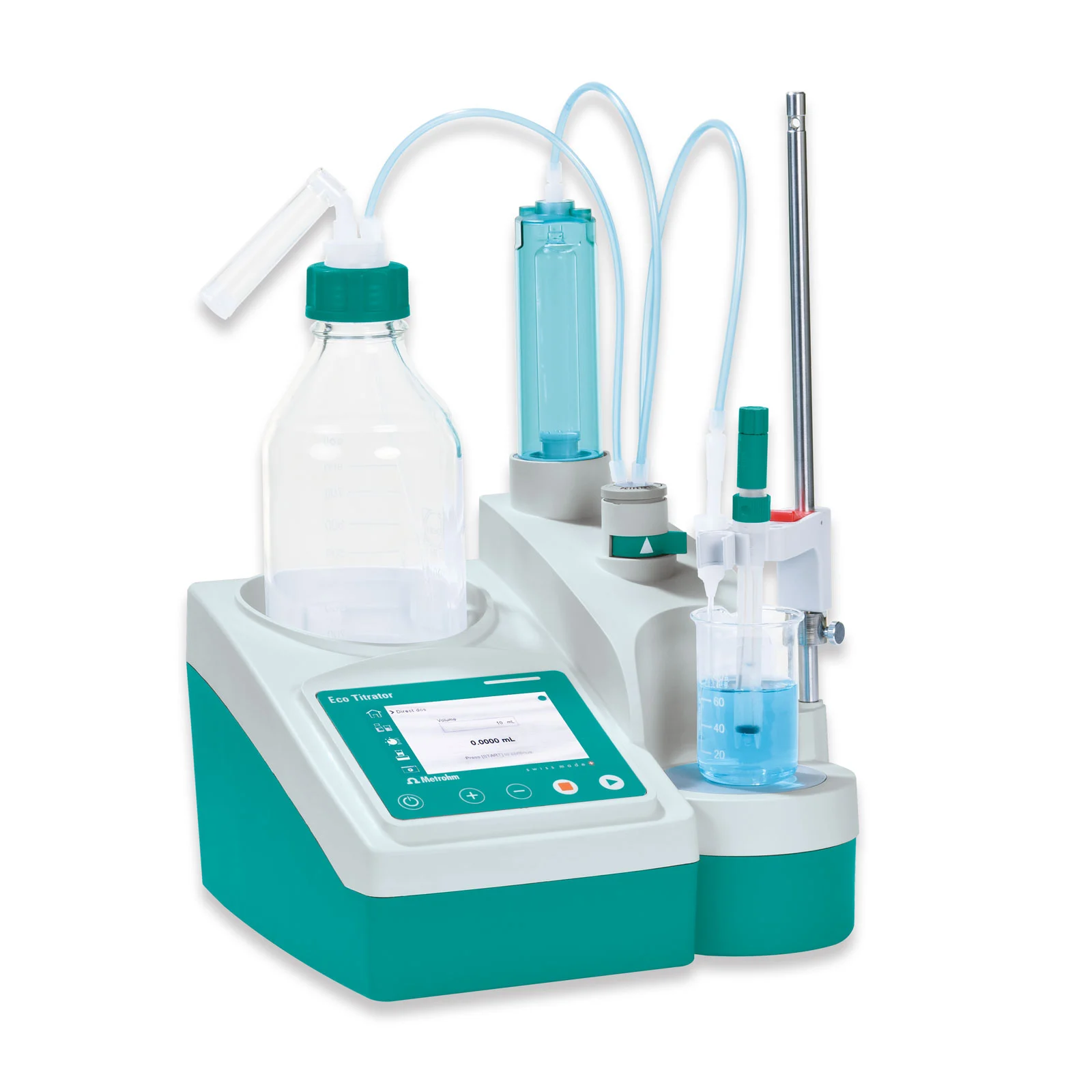

Metrohm Eco Titrator - Potentiometric Titration
Compact automatic titration for routine quality control across lubricants and oils, textile and denim, chemicals, fertilizers, pharmaceuticals, food, beverages and water analysis.
Select the application package and Metrohm sensor according to the required determination: aqueous acid-base, chloride, non-aqueous TAN/TBN, redox or a customised potentiometric method.
Automatic potentiometric titration with intuitive touch operation
Official Acid/Base, Salt, Oil and Redox application packages
TAN, TBN, chloride, acidity, vitamin C, iodine value and peroxide value among the core applications
Up to 120 stored titration methods with Routine and Expert operating modes
GLP-compliant reports, PDF/printed output, USB storage and PC/LIMS data export
Compact footprint with integrated magnetic stirrer
Supplied and supported in Pakistan by Continental Worldwide Trading Company (CWTC).
Key Features

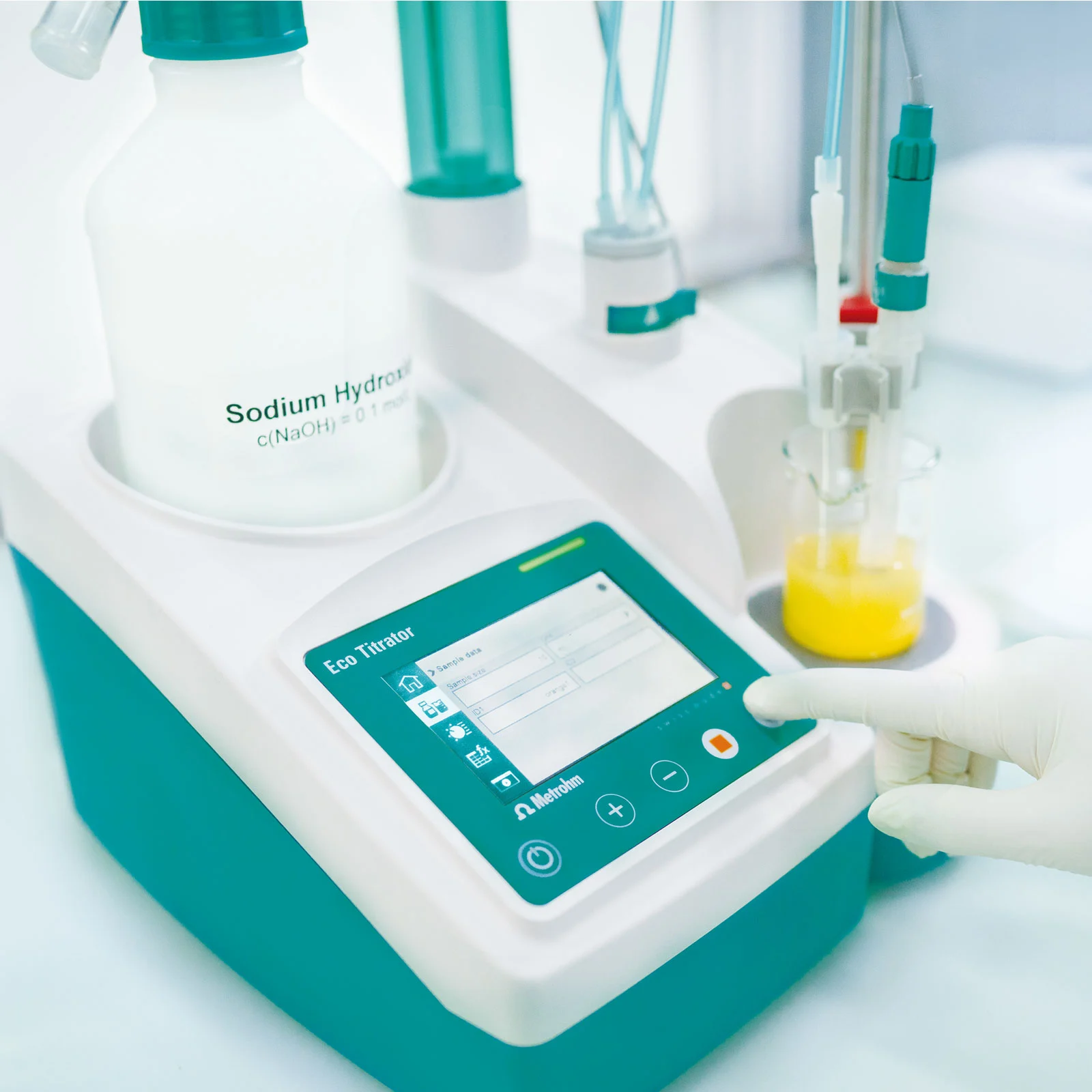

Straightforward Routine Operation
Touch-sensitive operation, predefined methods and direct stirrer controls reduce dependence on subjective visual endpoint detection.
Application-Specific Packages
Acid/Base, Salt, Oil and Redox packages combine the titrator with an appropriate cylinder unit and Metrohm electrode.
High-Resolution Dosing
Interchangeable 5, 10, 20 and 50 mL cylinder units support precise dosing from low-volume to higher-consumption titrations.
Reliable Endpoint Detection
The high-precision potentiometric input supports pH, redox, precipitation and other electrode-based endpoint detection.
Up To 120 Methods
Frequently used procedures can be stored and selected directly, supporting standardised routine operation.
Routine And Expert Modes
Routine mode restricts access to system, method and parameter editing; Expert access is password-protected.
Compact Integrated Design
The instrument occupies approximately a DIN A4 footprint and includes the magnetic stirrer in the housing.
GLP/GMP Documentation Support
Results, curves, parameters, calculations and statistics can be printed or saved; PC/LIMS reports support transfer to external systems.
Flexible Reporting
Reports can be printed, saved as PDF to USB, or exported as machine-readable PC/LIMS text files.
Where the Eco Titrator fits in laboratory workflows
TAN/TBN and Petroleum-Product Determinations
TAN / acid number, TBN / base number, bromine number, mercaptans, chloride and other routine petroleum-product determinations. The Eco Titrator Oil package is the primary starting point for non-aqueous TAN/TBN work.
Dye-Bath and Redox Chemistry Control
Redox monitoring of hydrosulfite ("hypo") and indigo dye-bath chemistry, plus acidity, alkalinity and related bath-control tests. Indigo/hydrosulfite work requires an application-specific method and may require a closed vessel and inert-gas handling; it is not a plug-and-play standard package.
Acid, Base and Concentration Testing
Assay of acids and bases, hydrochloric or phosphoric acid concentration, acidity/alkalinity, chloride, redox substances and other concentration tests where a validated potentiometric titration method is suitable.
Pharmacopeial Titrations
Aqueous or non-aqueous acid-base assays, redox assays, chloride and other pharmacopeial titrations where the selected electrode and method are appropriate. Customer validation and data-integrity requirements must be reviewed before quotation.
Routine Food-Quality Parameters
Titratable acidity, salt/chloride, vitamin C, iodine value, peroxide value, acid value and other routine food-quality parameters.
Alkalinity, Hardness and Water-Quality Testing
Carbonate alkalinity, calcium/magnesium hardness, chloride, sulfate, permanganate index, p-value and m-value with the suitable sensor and method.
Key Product Features
| Product Type | Stand-alone automatic potentiometric titrator |
| Measuring Modes | Potentiometric and polarised electrode measurements; dynamic, monotonic and endpoint titration methods according to configuration |
| Potentiometric Measuring Range | -2,000 to +2,000 mV |
| Potentiometric Resolution / Accuracy | 0.1 mV / ±0.5 mV under stated reference conditions |
| Polarisation Current | 1, 20, 50 or 100 µA selectable |
| Cylinder-Unit Volumes | 5, 10, 20 or 50 mL |
| Dosing Resolution | 20,000 steps per cylinder volume |
| Stored Titration Methods | Up to 120 |
| Display | Approx. 4.3-inch colour LCD, 480 × 272 pixels, resistive touch screen |
| Integrated Stirrer | Magnetic; approximately 120–1,800 rpm across settings |
| Connectivity | USB 2.0, Ethernet, remote interface; balance connection through suitable converter |
| Dimensions | 286 mm wide × 286 mm deep × 220 mm high without cylinder unit |
| Height With Cylinder / Support Rod | 358 mm with cylinder unit; 508 mm with support rod |
| Weight | Approx. 3.6 kg without accessories and power supply |
| Power Supply | 100–240 V AC, 50–60 Hz through external power supply |
| Protection | IP21 |
Complementary Products

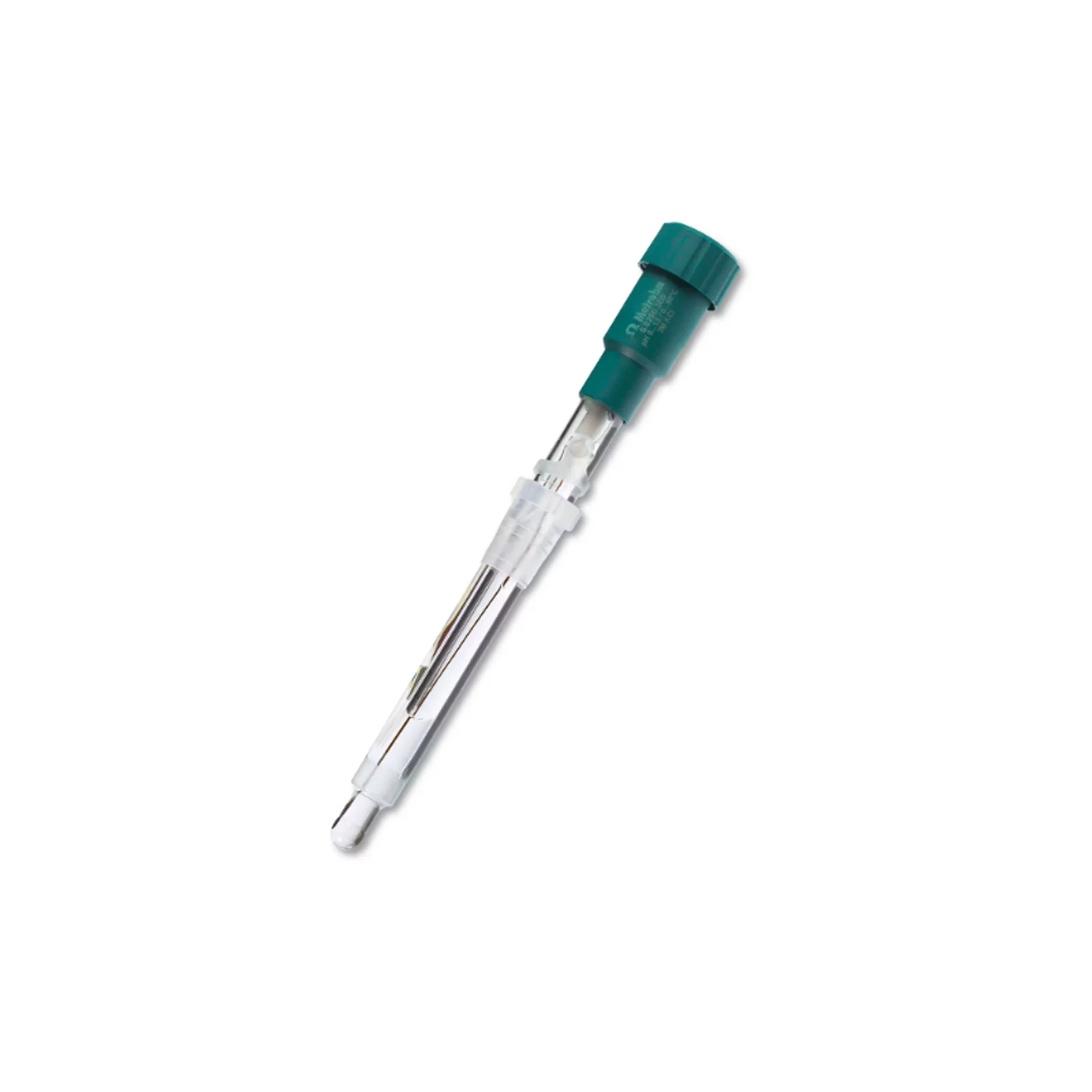

Metrohm Electrodes
LL-Ecotrode plus, Ag Titrode, Solvotrode easyClean, Pt Titrode, Optrode and other application-specific sensors.
Explore Electrodes →

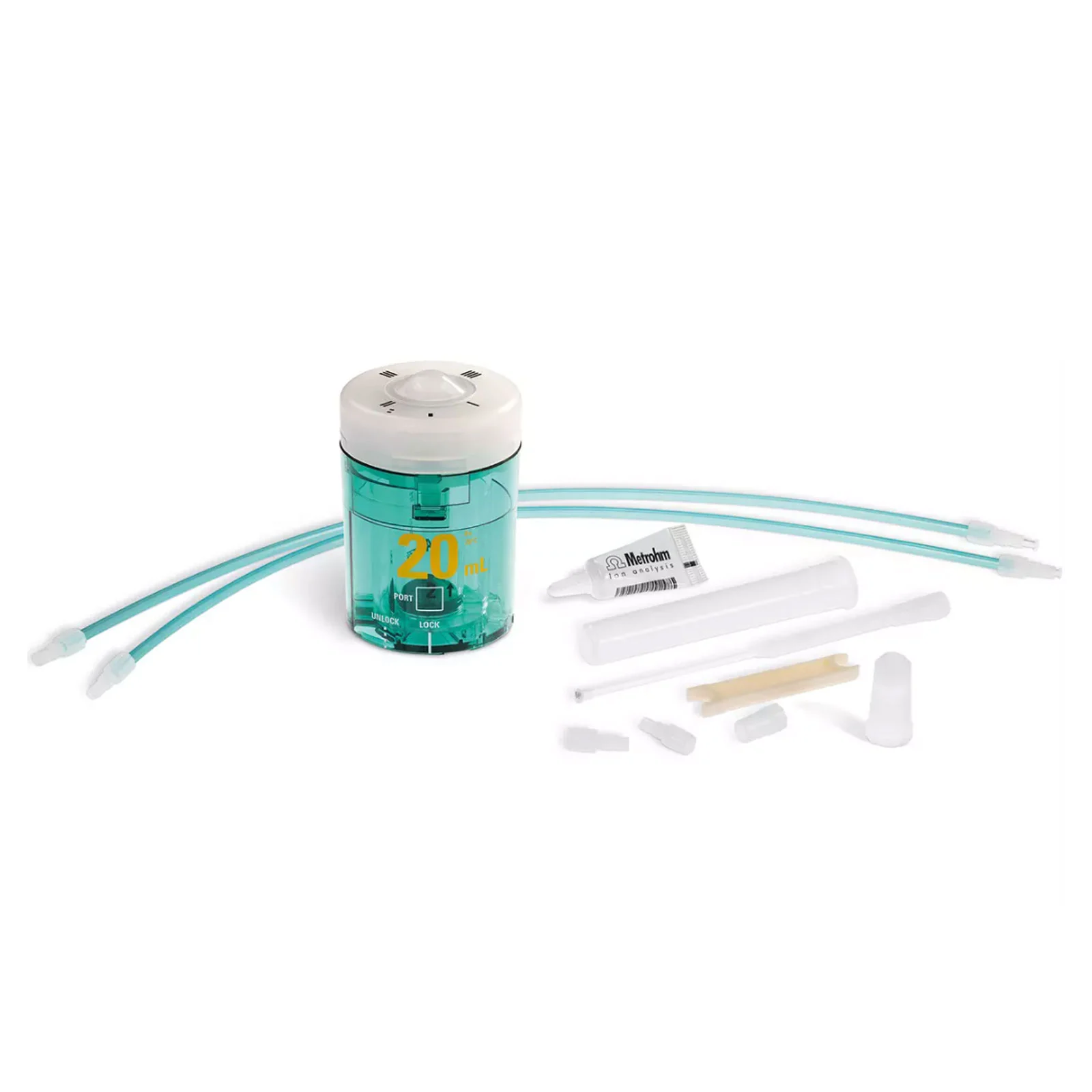

Cylinder Units
Interchangeable 5, 10, 20 and 50 mL cylinder units selected according to titrant consumption and precision requirements.
Explore Cylinder units →

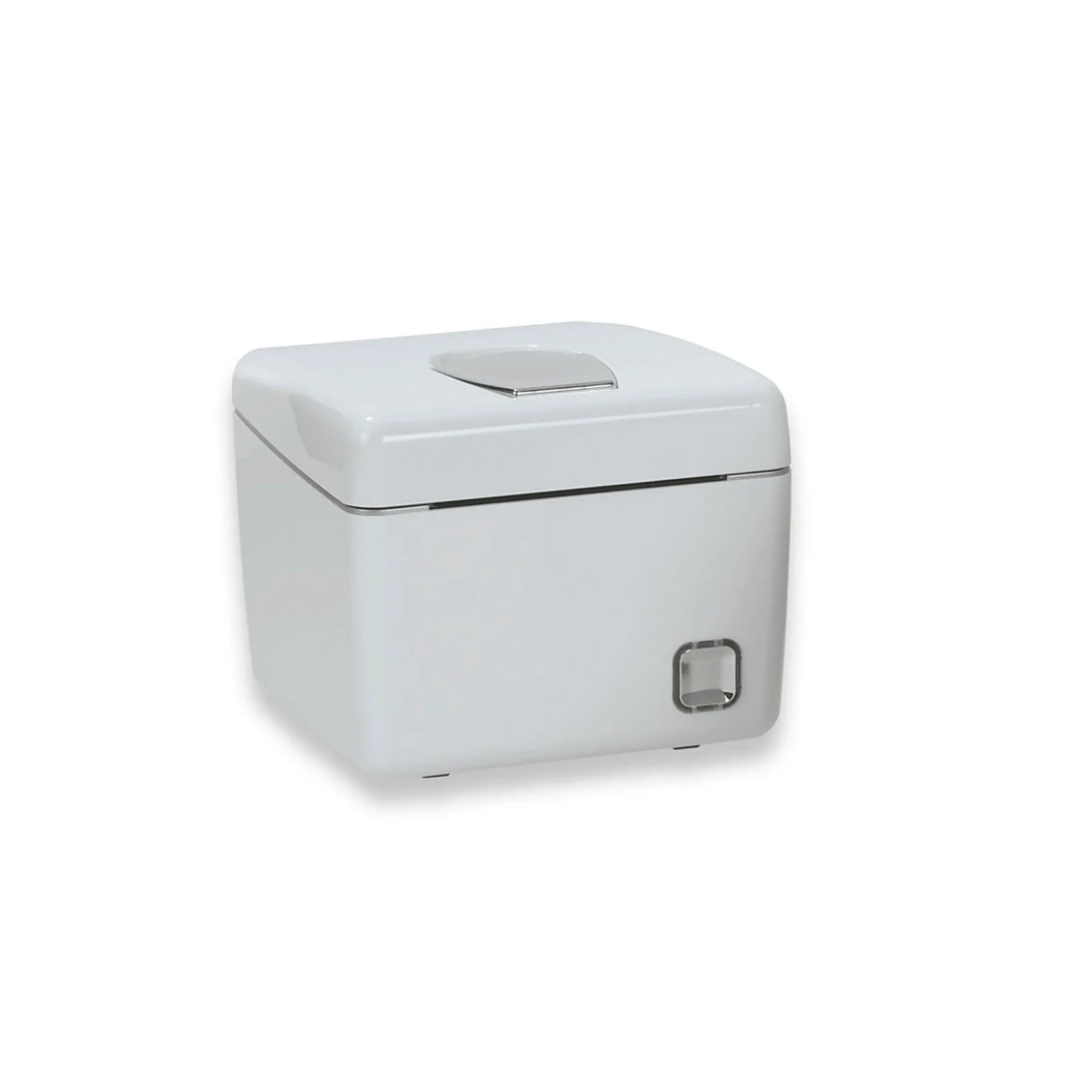

Printers
Custom Q3X thermal printer or compatible A4/PostScript printer for immediate laboratory reports.
Explore printer →
Balances and Data Interfaces
Balance connection through the appropriate USB/RS-232 converter; PC/LIMS output to USB or external systems.
Discuss accessories →Frequently Asked Question
Eco Titrator is for potentiometric titrations such as acid-base, redox, chloride, TAN and TBN. Eco KF Titrator is a separate Karl Fischer instrument for water-content determination.
Eco Titrator Oil is the normal starting package because it includes the 20 mL cylinder unit and Solvotrode easyClean for non-aqueous acid/base titration. The exact ASTM/IP method and solvent system must still be reviewed.
Eco Titrator Salt includes a 10 mL cylinder unit and Ag Titrode for precipitation titration with silver nitrate
The universal platform can support different potentiometric applications, but changing applications may require different electrodes, cylinder units, titrants, tubing and cleaning procedures. A dedicated package is simpler where one method group dominates.
Yes, these are among the food and oil redox applications listed by Metrohm. The Redox package is the logical starting point, with the exact method and accessories confirmed before supply.
A potentiometric redox method can be developed for these parameters, but it is application-specific. Indigo/hydrosulfite analysis may require closed-vessel operation, nitrogen protection and specific reagents; CWTC should review the customer’s current method before committing the configuration
It can perform many pharmacopeial aqueous, non-aqueous, redox and precipitation titrations and provides GLP/GMP documentation functions. The customer must confirm method validation and electronic-data requirements.
No. It offers printed/PDF reports, USB storage, PC/LIMS export and restricted Routine mode, but it is not a complete Part 11 electronic-record system.
Yes. Reports can be printed, saved as PDF to USB and exported as machine-readable PC/LIMS text files. The exact external-device setup should be included in the quotation.
Yes. CWTC can support package selection, installation, method setup, operator training, printer/data configuration, preventive maintenance, dosing tests, electrodes and technical service according to the quoted scope.
Local supply and support in Pakistan
CWTC supports Eco Titrator users in Pakistan with product selection, application discussion, quotation, supply, installation where applicable, operator training, accessory selection and after-sales coordination.
Product selectionApplication consultationDemonstrationInstallationOperator trainingTechnical support
