ATAGO CM-800α In-line (Process) Refractometer in Pakistan
Compact in-line (process) refractometer for continuous Brix and application-specific concentration monitoring directly in production pipelines.

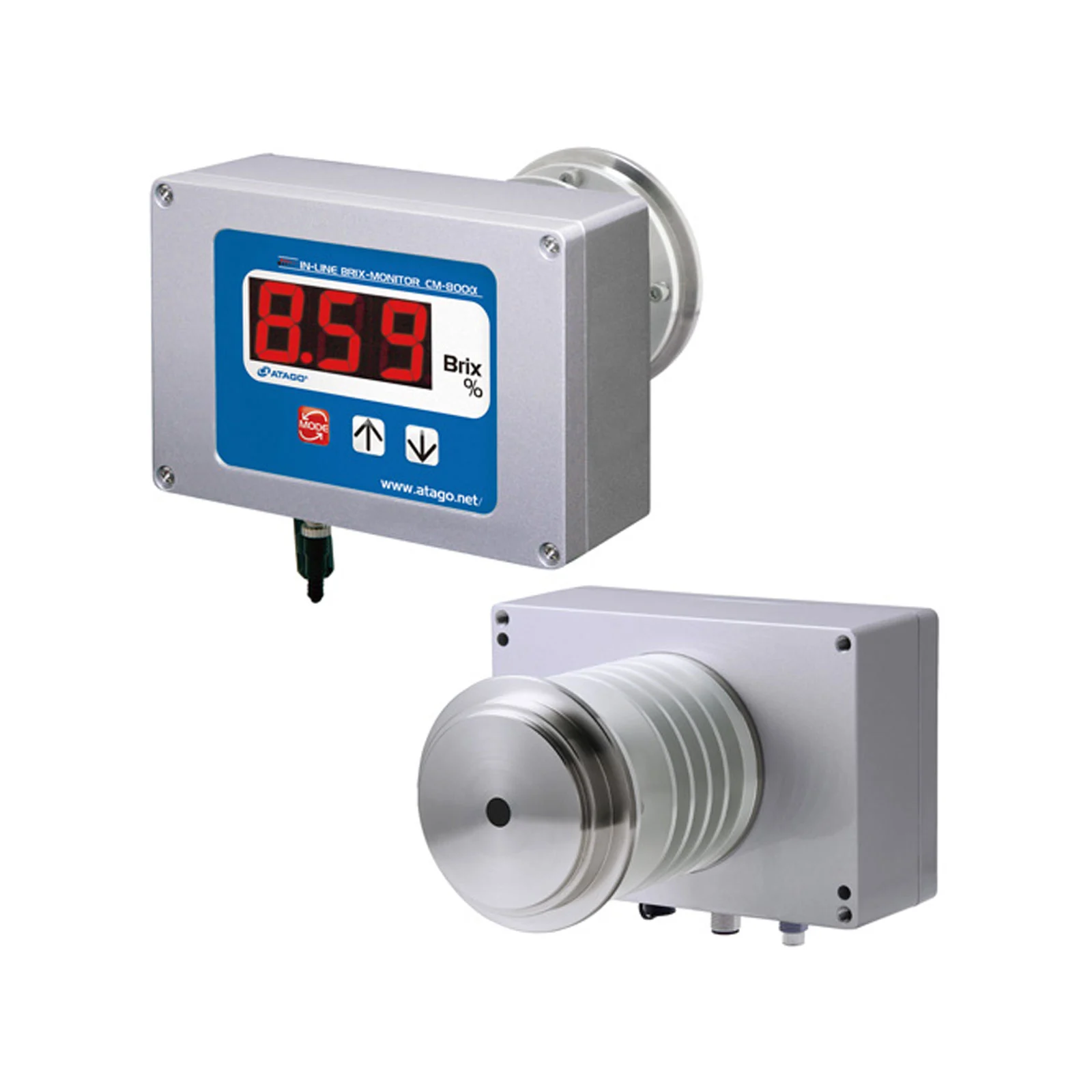

The ATAGO CM-800α continuously measures Brix or a qualified product-specific concentration directly in a production line. It supports real-time process visibility for syrup preparation, beverage and juice blending, pharmaceutical liquid production, food processing and suitable industrial solutions.
• Monitor concentration continuously rather than relying only on periodic samples.
• Detect dilution, blending errors and product-to-water transitions quickly.
• Send measurement signals to a recorder, PLC or process-control system.
• Reduce dependence on frequent manual sampling for routine process adjustment.
Supplied and supported in Pakistan by Continental Worldwide Trading Company (CWTC).
Key Features & Practical Benefits
Continuous In-line Measurement
Monitors Brix or a qualified product-specific concentration continuously while the process is running.
Compact Integrated Design
The measurement, display and operating functions are combined in one compact process instrument.
Automatic Temperature Compensation
Temperature compensation supports concentration monitoring across changing process conditions within the stated operating range.
Process-control Outputs
DC 4–20 mA, RS-232C and high/low alarm outputs support recording and plant-control integration.
Flat Wetted Surface
The flat prism area supports hygienic process design, inspection and compatible cleaning arrangements.
Application-specific Options
Dedicated concentration scales, alternative wetted materials and buildup-control accessories are available for selected applications.
Industries & Application Examples
65 °Brix Sugar Syrup Rooms
Monitor sugar dissolution and the approved syrup concentration continuously before transfer to the blending line. The page uses approximately 65 °Brix as a common syrup-room example; the plant recipe remains authoritative.
Beverage & Juice Blending
Support blend-ratio control, concentrate dilution and final checks before filling for soft drinks, juices, fruit drinks and beverage concentrates.
Pharmaceutical Syrups
Track formulation consistency in defined oral liquids, cough syrups and liquid excipient preparation where refractive index correlates reliably with the approved process target.
Food Concentrates & Extracts
Monitor products such as tomato preparations, liquid sweeteners, dairy concentrates, sauces, coffee or tea extracts and other suitable food streams.
Pre-Filling & Changeover Checks
Detect abnormal dilution and identify the transition between product and water during startup, rinsing or line changeover to support process control and reduce avoidable loss.
Chemical Concentration
Evaluate defined solutions such as NaOH, hydrogen peroxide, brine, glycols or selected solvents using a dedicated scale or qualified concentration relationship and compatible wetted materials.
Key Product Information
| Brand and model | ATAGO CM-800α |
|---|---|
| Product type | Compact integrated in-line (process) refractometer |
| Primary measurement | Brix and temperature; dedicated or qualified product-specific concentration scales are available for selected applications |
| Brix range | 0.0–80.0% |
| Brix accuracy | ±0.1% |
| Automatic temperature compensation | 5–100 °C |
| Process outputs | DC 4–20 mA, RS-232C and open-collector high/low alarm outputs |
| Standard wetted material | SUS316L prism stage; alternative material directions are available for selected chemically demanding applications |
| Typical environment | Syrup rooms, beverage and juice plants, pharmaceutical liquid production, food processing and suitable chemical/process lines |
Available Versions, Process Connections & Configuration Options
Standard CM-800α
General Brix monitoring from 0.0 to 80.0% for suitable food, beverage, syrup and process applications.
Dedicated Concentration Scales
ATAGO offers selected models for defined solutions such as sodium hydroxide, hydrogen peroxide, brine, glycols and other industrial liquids.
Wetted-material Options
The standard direction uses SUS316L at the prism stage. Titanium or Hastelloy directions may be considered where chemical compatibility requires them.
Process Connection
Select the sample inlet, fitting, pipe arrangement and measurement point around the pipe size, flow, pressure, temperature and hygienic requirements.
Cleaning & Buildup Control
Flat-prism design, compatible CIP/SIP arrangements, ultrasonic cleaning and prism-wiper options can be evaluated where coating or buildup is expected.
When to Consider PRM
Consider the ATAGO PRM Series where the project requires a separated sensor and remote display/control arrangement or a higher-precision process route.
Complementary Products & Process Accessories

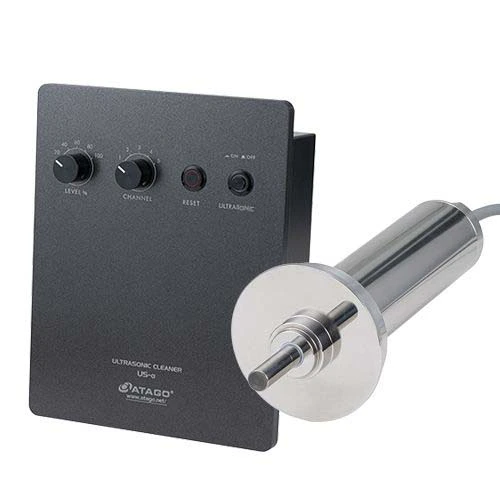

US-A Ultrasonic Cleaner
Helps reduce buildup on the prism where the sample tends to coat the measurement surface.

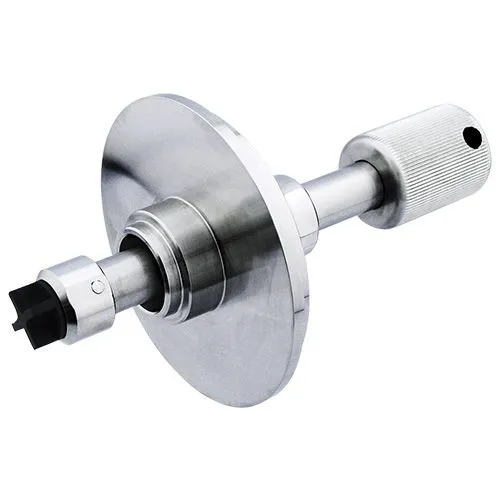

Prism Wiper Options
Mechanical cleaning options can be evaluated for applications where coating cannot be controlled by process conditions alone.

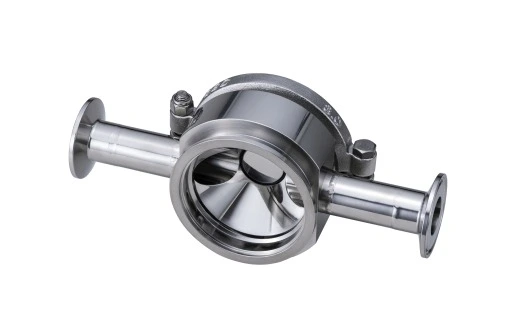

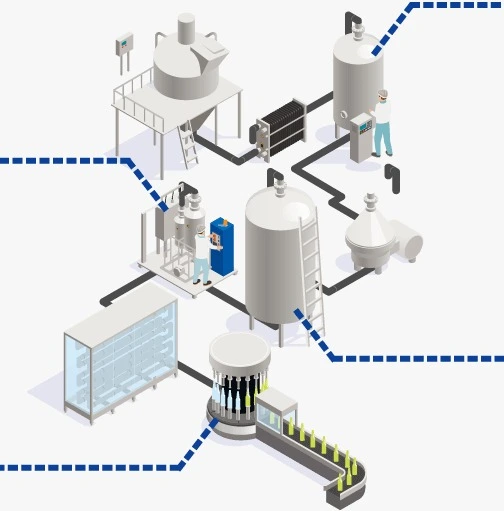

Process Fittings & Sample Inlets
Select suitable piping, bypass, flange or hygienic connection arrangements around the plant installation.
Recorder & PLC Integration
Use the available output signals for trending, alarms and feedback control with the plant automation system.

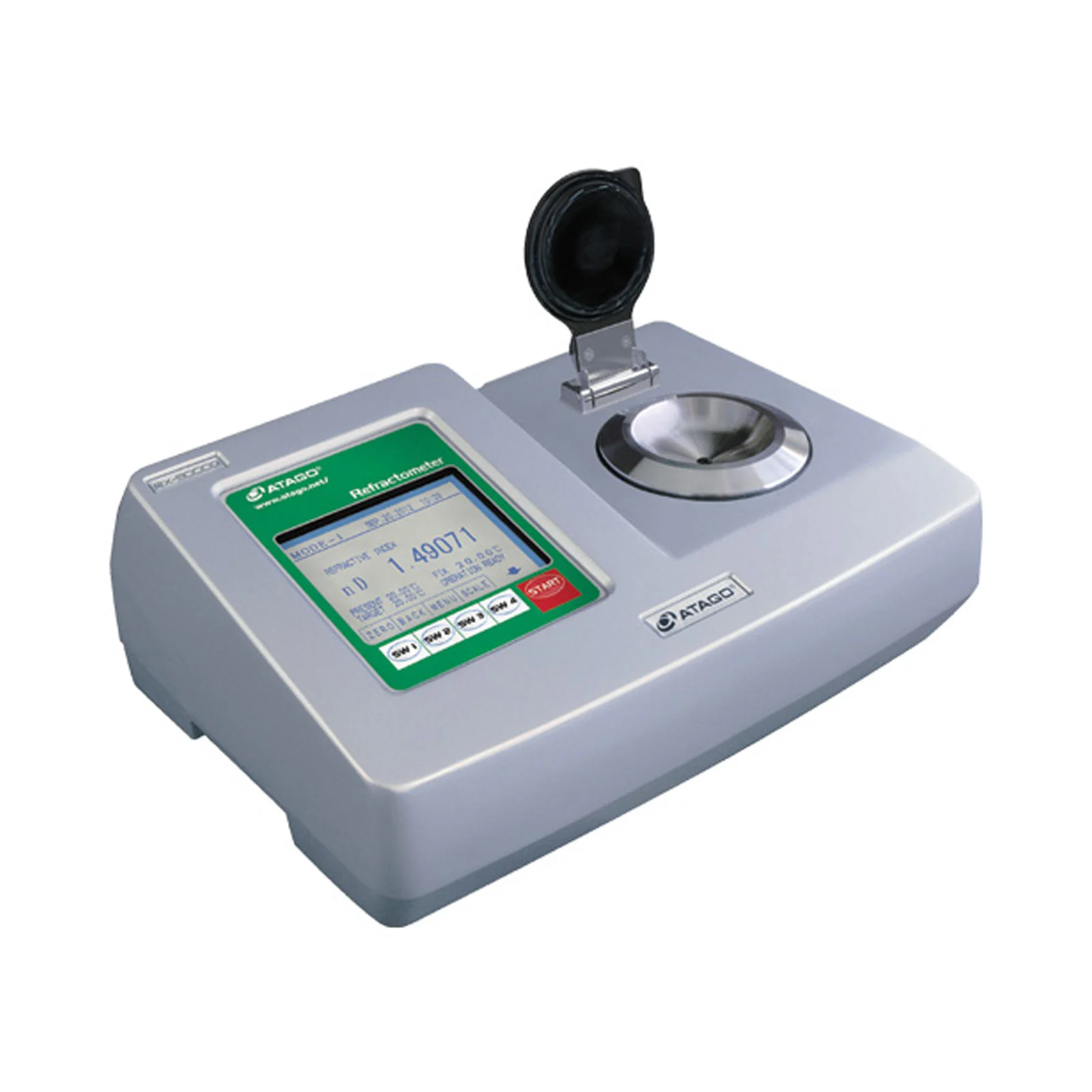

ATAGO RX Laboratory Refractometers
Laboratory automatic refractometers can support reference checks, product development and routine QC comparison.

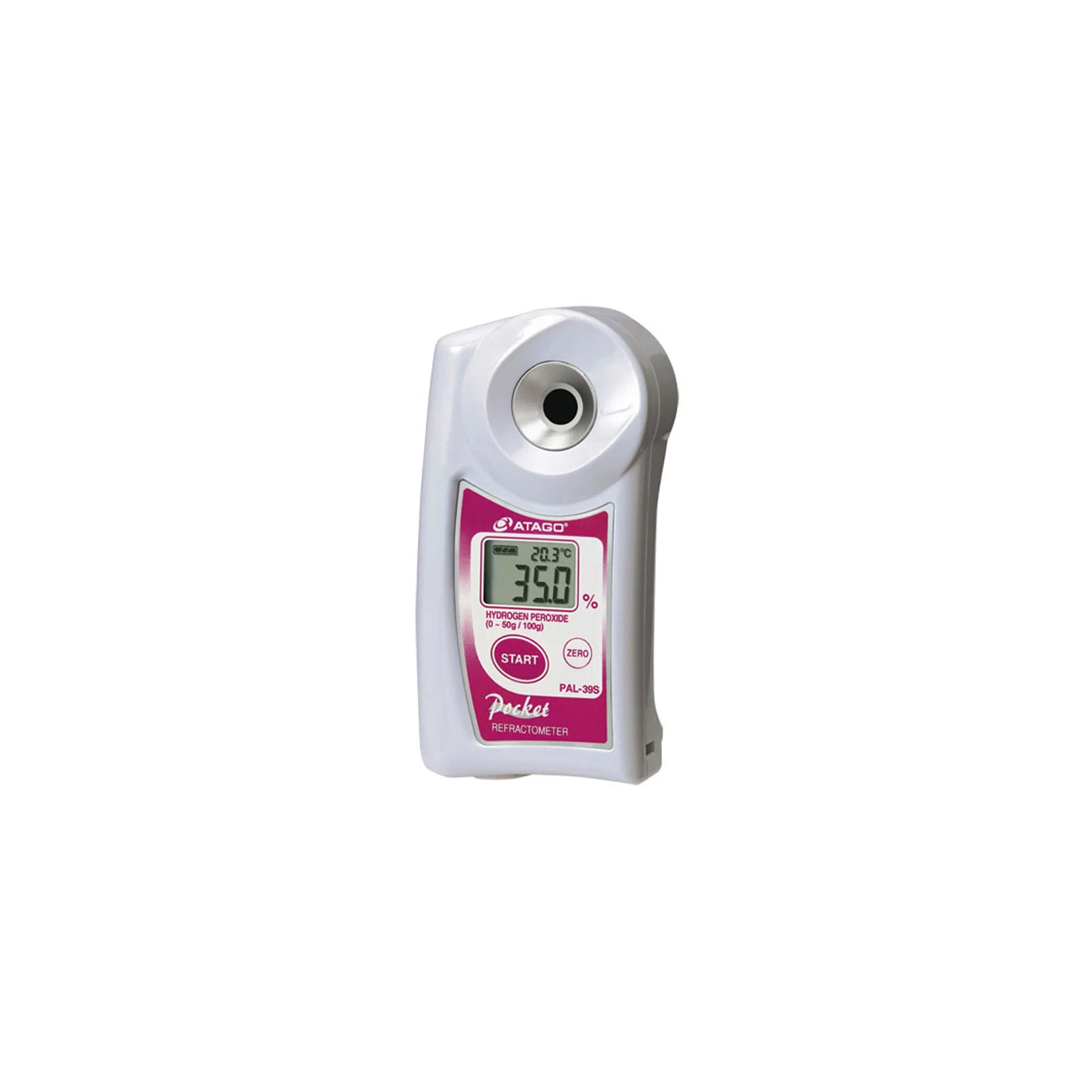

PAL & PRM Measurement Routes
Use PAL instruments for portable spot checks, or consider PRM where the process needs a remote sensor/display arrangement or higher precision.
Frequently Asked Questions
The standard CM-800α continuously measures Brix and temperature in a suitable process stream. Selected dedicated variants or qualified scales can display application-specific concentration where the sample relationship has been established.
Yes. The standard measuring range extends to 80% Brix, so approximately 65 °Brix sugar syrup falls within the range. Final suitability should still be confirmed against the plant recipe, operating temperature, required control limits and installation conditions.
Yes. The CM-800α can support continuous blend-ratio monitoring, dilution checks, final concentration checks before filling and product-to-water transition monitoring. The actual product relationship should be evaluated before using the reading for process control.
It can be used as a process monitor for suitable pharmaceutical syrups and liquid formulations where the product matrix is defined and the concentration relationship has been established. It does not replace API assay, identity testing or final product-release testing.
No. A refractometer responds to the total refractive effect of dissolved components in the sample. In mixed formulations, the displayed Brix value is therefore recipe-dependent and should be correlated with the approved product or concentration method.
Yes. The CM-800α provides DC 4–20 mA and RS-232C outputs together with high and low alarm outputs. Final integration, scaling and control logic should be confirmed and validated within the plant automation system.
The flat wetted design supports process cleaning arrangements, but the actual cleaning chemicals, temperature, pressure, process fitting, seals and exposure time must be reviewed for the selected installation.
The standard wetted surface uses SUS316L, while titanium or Hastelloy options are available for selected chemically demanding applications. Ultrasonic cleaning or prism-wiper options may be considered where coating or buildup is expected.
Yes. CWTC supports application review, product and material selection, quotation, supply, installation coordination, commissioning, operator training and after-sales support for ATAGO CM-800α projects in Pakistan.
CWTC Supply, Application Support & After-sales Support
CWTC supports ATAGO CM-800α projects in Pakistan with application discussion, sample and concentration evaluation, model and wetted-material selection, process-connection review, quotation, supply, installation coordination, commissioning, operator training and after-sales support. Final suitability depends on the product matrix, approved reference method, process conditions, cleaning cycle and control-system requirements.
Official ATAGO Resources & Downloads
Use the official ATAGO resources below for the latest technical specifications, manuals and product documentation.
Discuss Your In-line Concentration Application
CWTC can help evaluate the product matrix, concentration target, reference method, process connection, wetted material, cleaning conditions and plant-control requirements for an ATAGO CM-800α project in Pakistan.
